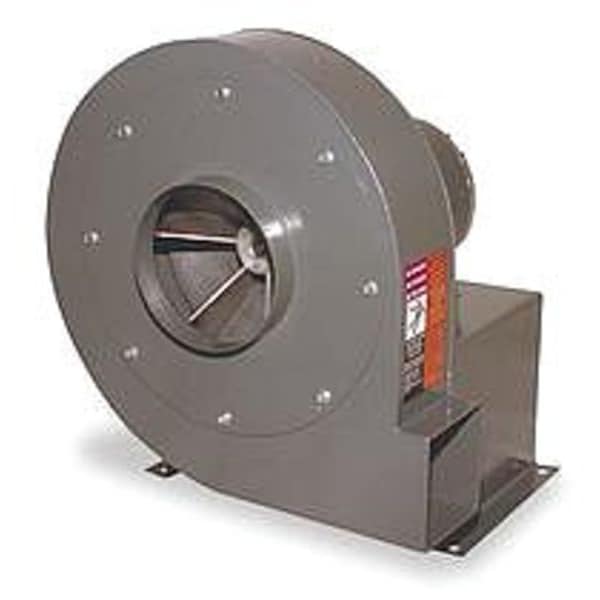

Dayton Blower, 8 15/16in 7E253 - main

Blower, 8 15/16in

  • Mfr # 7E253

  • Zoro # G2641073

product price: $503.99
/ea
Free Shipping & Returns

Key Features

Type
With Motor
Wheel Dia. (In.)
9 in
Voltage
115/230
Motor HP
3/4 hp
Rotation
CW
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7E253
Zoro #
G2641073
UPC #
-
Country of Origin
Multiple

Dimensions

Wheel Dia. (In.)
9 in
Dimension F (In.)
7 in
Shaft Dia. (In.)
5/8 in
Inlet Dia. (In.)
5 in
Discharge Width (In.)
3 1/2 in
Discharge Height (In.)
3 1/2 in
Dimension R (In.)
7 1/2 in
Width (In.)
13 5/8 in
Dimension C (In.)
3 1/2 in
Dimension K (In.)
6 7/8 in
Dimension B (In.)
8 in
Dimension A (In.)
12 1/8 in
Dimension L (In.)
6 3/4 in
Dimension J (In.)
5 3/4 in
Dimension G (In.)
1/2 in
Wheel Width (In.)
2 13/16 in
Dimension S (In.)
6 3/8 in
Height (In.)
17 in
Dimension D (In.)
3 1/2 in
Dimension E (In.)
5 5/8 in
Dimension O (In.)
12 3/4 in
Dimension P (In.)
5 in
Depth (In.)
12 3/4 in
Dimension H (In.)
6 3/8 in
Manufacturer Warranty Length
1 yr Limited
Wheel Diameter
9 in
Inlet Diameter
5 in
Outlet Height
3 1/2 in
Housing Height
17 in
Overall Depth
12 3/4 in
Outlet Width
3 1/2 in
Housing Width
13 5/8 in
Wheel Width
2 3/4 in
Wheel Bore Diameter
5/8 in
Overall Height
17 in
Shaft Diameter
5/8 in
Housing Depth
12 3/4 in
Overall Width
13 5/8 in

Details

Item
High Pressure Blower
Type
With Motor
Voltage
115/230
Motor HP
3/4 hp
Rotation
CW
CFM @ 3.000-In. SP
336
Hz
60
Max. Inlet Temp. (Deg. F)
180 Degrees F
Wheel Material
Aluminum
CFM @ 2.000-In. SP
391
Bearing Type
Ball in Motor
Housing Material
Steel
CFM @ 1.000-In. SP
437
Phase
1
dBA @ 5 Feet
77 dBA
Agency Compliance
AMCA AIR
Housing Finish
Gray Polyester Epoxy
Motor RPM
3,450 RPM
Max. Ambient Temp. (F)
104 Degrees F
Motor Enclosure
Totally Enclosed Fan Cooled
CFM @ 5.000-In. SP
173
Wheel Bore (In.)
5/8 in
Motor Frame
56
Full Load Amps
9.8/4.9
Blower RPM
3,450 RPM
Assembled/Unassembled
Unassembled
CFM @ 4.000-In. SP
270
Maximum Inlet Air Temperature
180 Degrees F
Current
10.4/5.3-5.2 A
Wheel Type
Radial
Includes Motor
Yes
Airflow @ 4.000 in SP
270 cfm
Motor Horsepower
3/4 hp
Maximum Fan Speed
3,450 RPM
Standards
AMCA Air Performance Certified
Housing Color
Gray
Maximum Ambient Temperature
104 Degrees F
Drive Type
Direct Drive
Nameplate Voltage
115/208-230V AC
Housing Material Gauge
16 ga
Number of Speeds
1
Housing Material Finish
Gray Polyester Epoxy
Assembly
Unassembled
Discharge Position
Bottom Horizontal
Airflow @ 1.000 in SP
437 cfm
Outlet Shape
Square
Motor Frame Designation
56
Number of Inlets
1
Airflow @ 2.000 in SP
391 cfm
Airflow @ 3.000 in SP
336 cfm
Sound Level
77 dBA @ 5 ft
Motor Duty Class
Continuous
Airflow @ 5.000 in SP
173 cfm
Maximum Static Pressure
5 in wc
Includes Drive Package
Yes
Frequency
60 Hz
For Ventilation Type
Exhaust
Number of Discharge Positions
8
Features
Paddle-Type, Self-Cleaning are Precision Balanced for Top Performance, Powerful Blower Supplies High-Pressure Air for Efficient Cooling and Conveying
Motor Insulation Class
B
Flange Type
Non-Flanged
Motor Speed
3,450 RPM
OEM Replacement
No
Motor Type
3-Phase

Description

High Pressure Blower, Wheel Type Radial, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Unassembled, Wheel Diameter 9 in, Airflow @ 0.000 in SP Not Applicable, Airflow @ 0.100 in SP Not Applicable, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP Not Applicable, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP Not Applicable, Airflow @ 0.500 in SP Not Applicable, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP 437 cfm
