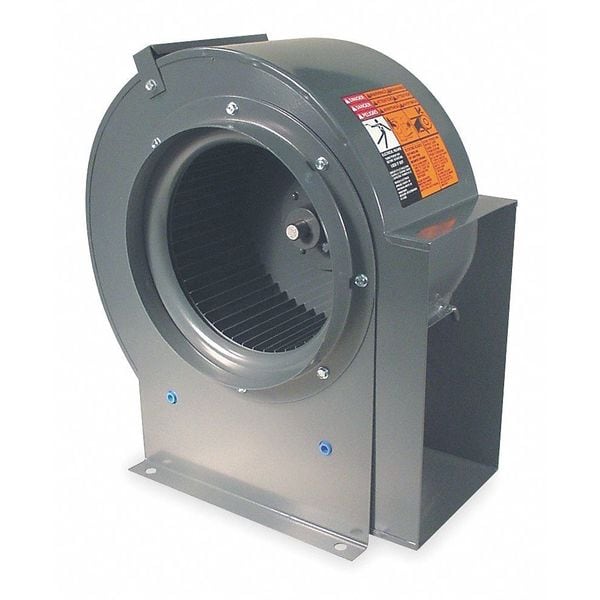

Blower, Duct, 9 In

  • Mfr # 2C887
  • Zoro # G1760552
product price:
$
572.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia. (In.)
9 in
Wheel Width (In.)
4 1/2 in
Max. Inlet Temp. (Deg. F)
180 Degrees F
Rotation
CW
Motor Enclosure
Open Dripproof
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2C887
Zoro #
G1760552
UPC #
-
Country of Origin
Canada

Dimensions

Wheel Dia. (In.)
9 in
Wheel Width (In.)
4 1/2 in
Inlet Dia. (In.)
9 in
Discharge Height (In.)
10 3/4 in
Height (In.)
17 in
Shaft Dia. (In.)
5/8 in
Discharge Width (In.)
6 1/2 in
Width (In.)
11 in
Depth (In.)
15 in
Overall Width
11 in
Overall Height
17 in
Outlet Height
10 3/4 in
Inlet Diameter
9 in
Outlet Width
6 1/2 in
Shaft Diameter
5/8 in
Overall Depth
15 in
Wheel Diameter
9 in
Manufacturer Warranty Length
1 yr Limited
Wheel Width
4 1/2 in
Fits Chest Size
Adjustable Top Motor Mount Moves from Top to Rear Mounting, Continuous-Duty Blower Has Adjustable Mounting and Discharge Position, Easily Altered to Required Discharge Position by Drilling New Motor Mounting Holes, Rotating Blower Housing on Base, and Bolting in Position, High Volume at Low Velocity, Motor is Resilient-Mounted

Details

Max. Inlet Temp. (Deg. F)
180 Degrees F
Rotation
CW
Motor Enclosure
Open Dripproof
Wheel Material
Steel
Item
Blower
Housing Finish
Gray Baked Polyester Epoxy
Type
Less Drive Package
Bearing Type
Ball
Max. Ambient Temp. (F)
104 Degrees F
Housing Material
Steel
Wheel Type
Forward-Curved
Application
Air Conditioning, Central Duct Ventilation, Exhausting, Industrial Use, Processing
Drive Type
Belt Drive
Features
Adjustable Top Motor Mount Moves from Top to Rear Mounting, Continuous-Duty Blower Has Adjustable Mounting and Discharge Position, Easily Altered to Required Discharge Position by Drilling New Motor Mounting Holes, Rotating Blower Housing on Base, and Bolting in Position, High Volume at Low Velocity, Motor is Resilient-Mounted
Standards
NEC, OSHA
Maximum Fan Speed
1,000 RPM
Thermal Overload Protection
Yes
Includes Motor
No
Electrical Connection
Ground Wire
Number of Inlets
1
Market
Industrial
Maximum Static Pressure
3/4 in wc
Number of Discharge Positions
7
Housing Color
Gray
Maximum Inlet Air Temperature
180 Degrees F
Minimum Fan Speed
1,000 RPM
Maximum Motor Horsepower
1/4 hp
Maximum Ambient Temperature
104 Degrees F
Assembly
Unassembled
Minimum Airflow
475 cfm
Housing Material Finish
Gray Polyester Epoxy
Includes Drive Package
No
Discharge Position
Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast
Flange Type
Non-Flanged
Outlet Shape
Rectangular
Mount Type
Ceiling Suspension or Side Mounting
Maximum Airflow
1,100 cfm

Description

Blower, Wheel Type Forward-Curved, Drive Type Belt Drive, Includes Drive Package No, Assembly Unassembled, Wheel Diameter 9 in, Minimum Airflow 475 cfm, Maximum Airflow 1,100 cfm, Maximum Static Pressure 3/4 in wc, Maximum Inlet Air Temperature 180 Degrees F, Shaft Diameter 5/8 in, Bearing Type Ball, Wheel Material Steel, Housing Material Steel, Wheel Width 4 1/2 in, Number of Inlets 1, Inlet Diameter 9 in, Outlet Shape Rectangular, Outlet Height 10 3/4 in, Outlet Width 6 1/2 in

Restrictions

This item has been restricted from sale in the following states: CA
