Shop DAYTON

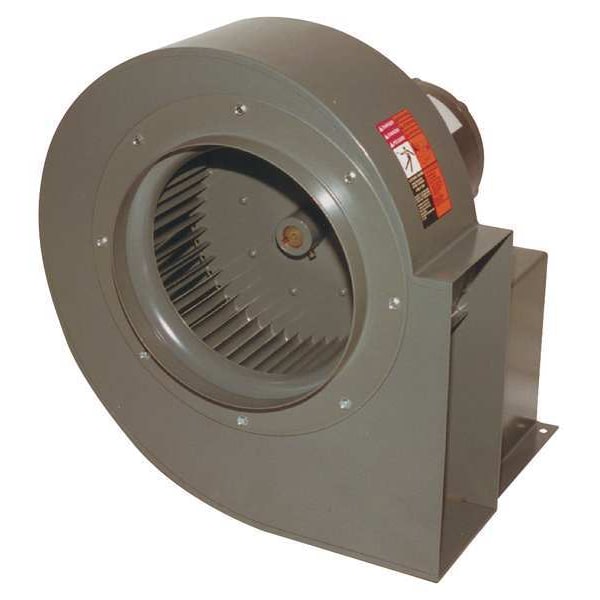

Blower, Duct, 9 In

  • Mfr # 7C408

  • Zoro # G2344352

product price:
$
1,428.99
/ea
Free Shipping & Returns

Key Features

Type
With Motor
CFM @ 2.000-In. SP
1,050 cfm
Full Load Amps
13.6/6.8
Max. Inlet Temp. (Deg. F)
180 Degrees F
Voltage
115/230
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7C408
Zoro #
G2344352
UPC #
-
Country of Origin
Multiple

Dimensions

Wheel Dia. (In.)
9 in
Outlet Height (In.)
10 3/4 in
Depth (In.)
15 in
Inlet Dia. (In.)
9 in
Wheel Width (In.)
4 1/2 in
Height (In.)
18 in
Outlet Width (In.)
6 1/2 in
Width (In.)
16 in
Inlet Diameter
9 in
Housing Height
18 in
Housing Width
12 1/8 in
Housing Depth
15 in
Overall Width
16 in
Outlet Height
10 3/4 in
Manufacturer Warranty Length
1 yr Limited
Overall Height
18 in
Outlet Width
6 1/2 in
Wheel Width
4 1/2 in
Wheel Diameter
9 in
Wheel Bore Diameter
7/8 in
Overall Depth
15 in

Details

Item
Blower
Type
With Motor
CFM @ 2.000-In. SP
1,050 cfm
Full Load Amps
13.6/6.8
Max. Inlet Temp. (Deg. F)
180 Degrees F
Voltage
115/230
Wheel Bore (In.)
7/8 in
Rotation
CW
Motor RPM
1,725 RPM
Housing Finish
Gray Polyester Epoxy
dBA @ 5 Feet
58 dBA
Bearing Type
Ball
Housing Material
Steel
Motor Enclosure
Open Dripproof
Phase
1
Hz
60 Hz
Motor Type
Capacitor-Start
Wheel Material
Steel
Assembled/Unassembled
Unassembled
Max. Ambient Temp. (F)
104 Degrees F
CFM @ 1.75-In. SP
1,250 cfm
Blower RPM
1,725 RPM
Motor HP
1 hp
CFM @ 1.500-In. SP
1,390 cfm
Drive Type
Direct Drive
Housing Material Gauge
16 ga
Motor Horsepower
1 hp
Number of Discharge Positions
8
Maximum Inlet Air Temperature
180 Degrees F
Frequency
60 Hz
Housing Material Finish
Gray Polyester Epoxy
Nameplate Voltage
115/208-230V AC
Motor Insulation Class
B
Includes Drive Package
Yes
Housing Color
Gray
Motor Duty Class
Continuous
Current
8.4/4.6-4.2 A
Includes Motor
Yes
Flange Type
Non-Flanged
Assembly
Unassembled
Outlet Shape
Rectangular
Maximum Fan Speed
1,725 RPM
Number of Inlets
1
Number of Speeds
1
Standards
UL Listed
Wheel Type
Forward-Curved
Features
Rigid Mounted, Combine Characteristics of High-Volume and High Pressure Blowers, Housing with Welded, Airtight Joints, Provide High-Volume Ventilation When Duct Systems are Required
Motor Speed
1,725 RPM
Maximum Static Pressure
2 in wc
Sound Level
58 dBA @ 5 ft
Airflow @ 1.500 in SP
1,390 cfm
Airflow @ 2.000 in SP
1,050 cfm
Maximum Ambient Temperature
104 Degrees F
Motor Frame Designation
56HZ
OEM Replacement
No

Description

Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Unassembled, Wheel Diameter 9 in, Airflow @ 1.500 in SP 1,390 cfm, Airflow @ 2.000 in SP 1,050 cfm, Airflow @ 2.500 in SP Not Applicable, Airflow @ 3.000 in SP Not Applicable, Airflow @ 3.500 in SP Not Applicable, Airflow @ 4.000 in SP Not Applicable, Airflow @ 4.500 in SP Not Applicable, Airflow @ 5.000 in SP Not Applicable, Airflow @ 6.000 in SP Not Applicable, Airflow @ 7.000 in SP Not Applicable

Restrictions

This item has been restricted from sale in the following states: CA
