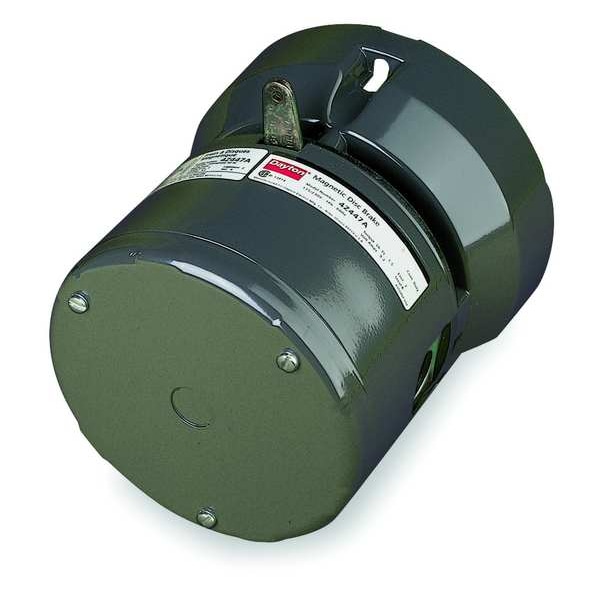

Dayton Brake, Magnetic Disc, Torque 1.5 Ft-Lb 2LYV2 - main

Brake, Magnetic Disc, Torque 1.5 Ft-Lb

  • Mfr # 2LYV2

  • Zoro # G3304777

product price: $670.99
/ea
Free Shipping & Returns

Key Features

For Use With
4Z384, 4Z394, 6Z404, 6Z405
Type
Magnetic Disc
Length (In.)
5.5 in
Shaft Dia. (In.)
5/8 in
Coil Volts
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2LYV2
Zoro #
G3304777
UPC #
190735222904
Country of Origin
United States

Dimensions

Length (In.)
5.5 in
Shaft Dia. (In.)
5/8 in
Power Lead Length (In.)
18
Dia. (In.)
6 1/2 in
Overall Length
5.5 in
Outside Diameter
6.5 in
Shaft Diameter
5/8 in

Details

Item
Brake
For Use With
4Z384, 4Z394, 6Z404, 6Z405
Type
Magnetic Disc
Coil Volts
230/460V AC
Static Torque (Ft.-Lb.)
1.5
Enclosure
Dripproof
Max. RPM
3,450 RPM
Service Factor
1
Converts
Converts Standard TEFC Motor into a TEFC Brake Motor
Ambient (C)
40 Degrees C
Max. HP @ 3450 RPM
3/4 hp
Agency Compliance
CSA
Inrush Amps
0.86/0.43
Includes
Hardware
Brake Mouting Position
Horizontal
Mounts On
Most Totally Enclosed Fan-Cooled Dayton General Purpose Motors And Many Right-Angle Gearmotors
Function
Spring Set Brake With Automatic Reset Release
Max. HP @ 1725 RPM
1/3 hp
Features
Easily Installed
Application
Stops and Holds Rotating Loads on Motors
Amps Holding
0.05/0.026
Series
50 Series
Hz
60
Duty
Continuous
Voltage @ 60 Hz
230/460
Lever Type
Manual Release
Phase
Single
Finish
Gray Enamel Paint
Standards
CSA Certified
Holding Current
0.05/0.026 A
Inrush Current
0.86/0.43 A
Mounting Orientation
Horizontal
Continuous Duty
Yes
Maximum Ambient Temperature
40 Degrees C
Clutch/Brake Type
Magnetic Disc
Housing Material Finish
Gray Enamel Paint
Static Torque
1.5 ft-lb
Maximum Speed
3,450 RPM
Lever Release
Manual
Frequency
60 Hz
Operating Voltage
230/460V AC
Enclosure Type
Dripproof
Coil Voltage
230/460V AC
Horsepower @ RPM
1/3 hp @ 1725 RPM, 3/4 hp @ 3450 RPM

Description

Brake, Clutch/Brake Type Magnetic Disc, Coil Voltage 230/460V AC, Operating Voltage 230/460V AC, Enclosure Type Dripproof, Static Torque 1.5 ft-lb, Horsepower @ RPM 1/3 hp @ 1725 RPM, 3/4 hp @ 3450 RPM, Shaft Diameter 5/8 in, Maximum Speed 3,450 RPM, Mounting Location Most Totally Enclosed Fan-Cooled Dayton General Purpose Motors and Many Right-Angle Gearmotors, For Use With 4Z384, 4Z394, 6Z404, 6Z405, Includes Hardware, Continuous Duty Yes, Outside Diameter 6.5 in, Overall Length 5.5 in
