Shop DAYTON

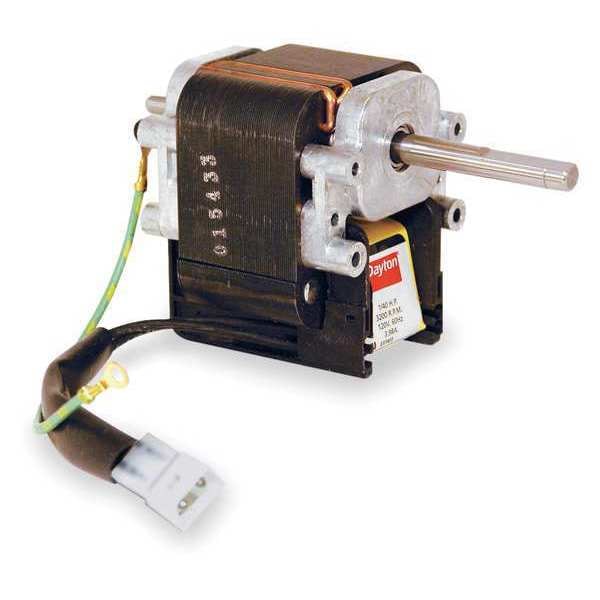

C-Frame Motor, Nonstandard, 3/4, 2 In. L

  • Mfr # 5M065E

  • Zoro # G1876034

product price:  $60.99
/ea

Key Features

Voltage
120V AC
Shaft Dia.
1/4 in, 5/16 in
HP
1/40
Nameplate RPM
3,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5M065E
Zoro #
G1876034
UPC #
190735346563
Country of Origin
Viet Nam

Dimensions

Shaft Dia.
1/4 in, 5/16 in
Length Less Shaft
2 5/8 in
Cord Length
5 in
Shaft Length
2 in
Stack Size
1 1/2 in
Mounting Stud Thread Size
#6-32
Overall Length
5 1/4 in
Lead Length
4 3/4 in
Body Diameter
2.4 in
Frame Size
C-Frame
Shaft Diameter
5/16 in
Bolt Circle Diameter
1 7/8 in
Wire Rope Length
5 1/4 in

Details

Item
C-Frame Motor
Voltage
120V AC
HP
1/40
Nameplate RPM
3,200
No. of Speeds
1
Motor Sub Application
Direct Drive Fan/Blower
RPM Range
3,001-3,600
Motor Shaft Rotation
CWSE
Phase
Single
Motor Mounting Type
Face
Hz
60 Hz
Frame
Non-Standard
Ins. Class
B
O.C. Mounting
1-7/8 in
Motor Thermal Protection
One-Shot
Motor Design
Shaded Pole
Motor Application
HVAC/R
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Service Factor
1
Motor Bearings
Ball
Full Load Amps
3.9 A
Plug Type
Molex 2 Pin
Ambient Temperature
40 Degrees C
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Open Air-Over
Standards
UL (E37403)
Motor Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Number of Shafts
1
Capacitor Required
Capacitor Not Required
Mounting
Face
Number of Speeds
1
Frequency
60 Hz
Mounting Position
Horizontal
Duty
Continuous
Application
Fan/Blower
Bearing Type
Ball
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Product Type
C-Frame Motor
Full Load Current @ 60 Hz
3.9 A
Mounting Stud Pattern
1 7/8 in
Includes Fan
Fan Included
Drive Type
Direct Drive
Bearing Protection Type
No Protection
Run Time - Maximum
24 hr
Shaft Design
Flat
Number of Blower Stages
1
Nominal Efficiency
24.4 %
Weight
1.3 lb
Wattage
36W
Motor Enclosure Type
Open Air Over
Duty Rating
Residential
Adjustable Speed Compatibility
Not Adjustable Speed Compatible
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Efficiency Rating
Standard Efficiency (IE1)
Flange Type
Ventilated

Description

C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 3,200 RPM, No. of Speeds 1, Voltage 120V AC, 3.9 A Full Load Amps, C-Frame Frame, Output Watts 36W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection One-Shot, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Hole
