Shop DAYTON
See all product information

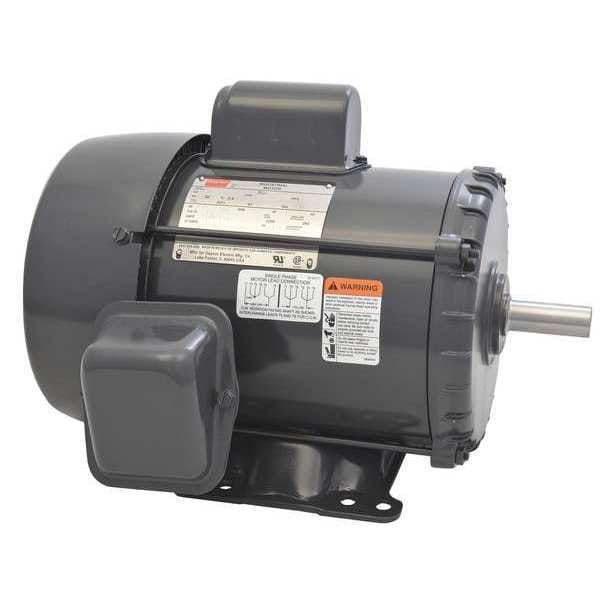

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 184 Frame
Mfr # 5K486
Zoro # G1191294
product price:Â $1,031.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
5K486
Zoro #
G1191294
UPC #
190735345245
Country of Origin
Multiple
Dimensions
Overall Length
15 1/8 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
7/8 in
Length Less Shaft
12 7/8 in
Shaft Length
2 1/4 in
Shaft Diameter
7/8 in
Frame Size
184
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 18.4/9.2 A, 184 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated
