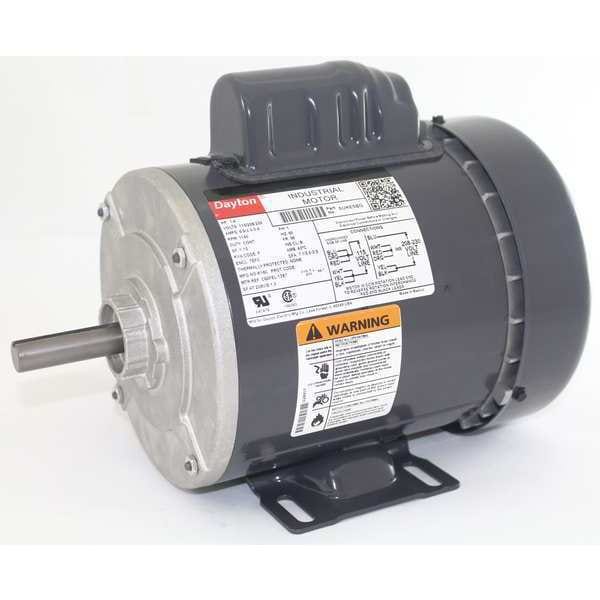

Capacitor-Start General Purpose Motor, 1/4 hp HP, 56 Frame, 115/208-230V AC Voltage
Mfr # 5UKE5
Zoro # G0737012
product price: $589.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1/4 hp
RPM Range
1,101-1,200
Voltage
115/208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5UKE5
Zoro #
G0737012
UPC #
190735351598
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Length Less Shaft
9 9/16 in
Manufacturers Warranty Length
1 yr
Shaft Length
1 15/16 in
Overall Length
11 3/8 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.9/3.4-3 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
