Shop DAYTON

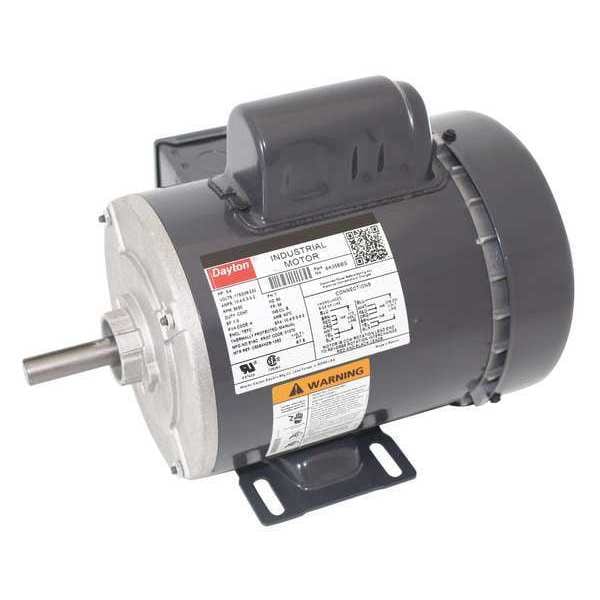

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56 Frame

  • Mfr # 6K358BG

  • Zoro # G3196873

product price:
$
288.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
3/4 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K358BG
Zoro #
G3196873
UPC #
190735365762
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Overall Length
11 7/8 in
Length Less Shaft
10 in
Shaft Length
1 7/8 in
Wire Rope Length
11 7/8 in
Shaft Diameter
5/8 in
Frame Size
56
Length
11 7/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
3/4 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
56
Motor Thermal Protection
Manual
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified (258501), UL Recognized (E37403)
Hz
60 Hz
Frame Material
Steel
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Phase
Single
Includes
Conduit Box, Shaft Key
Motor Efficiency Group
Standard Efficient
Nominal Efficiency
61.3 %
RPM Group
3001-3600
Motor Bearings
Ball
Footnotes
51
Full Load Amps
10.4/5.3-5.2 A
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Application
General Purpose
Frequency
60 Hz
Mounting Position
All Angle
Number of Speeds
1
Product Type
General Purpose Motor
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
10.4/5.3-5.2 A
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.4/5.3-5.2 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
