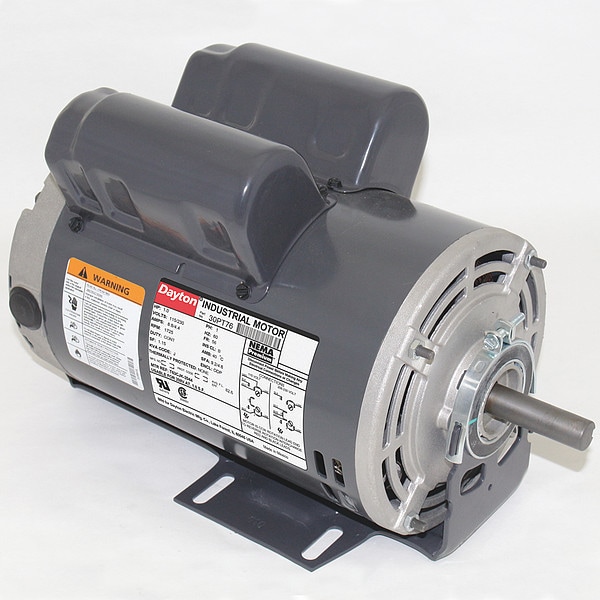

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 56 Frame, 115/230V AC Voltage
Mfr # 30PT76
Zoro # G9009497
product price:Â $519.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1 hp
RPM Range
1,701-1,800
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 30PT76
- Zoro #
- G9009497
- UPC #
- 190735248638
- Country of Origin
- Mexico
Dimensions
- Manufacturers Warranty Length
- 1 yr
- Shaft Length
- 1 7/8 in
- Length Less Shaft
- 10 3/8 in
- Overall Length
- 12 5/16 in
- Shaft Dia.
- 5/8 in
- Frame Size
- 56
- Shaft Diameter
- 5/8 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Restrictions
Indicates a new DOE energy compliant motor.
