  9. Centrifugal Pump, 1 hp, 115/230V AC, 1 Phase, 48 ft Max Head

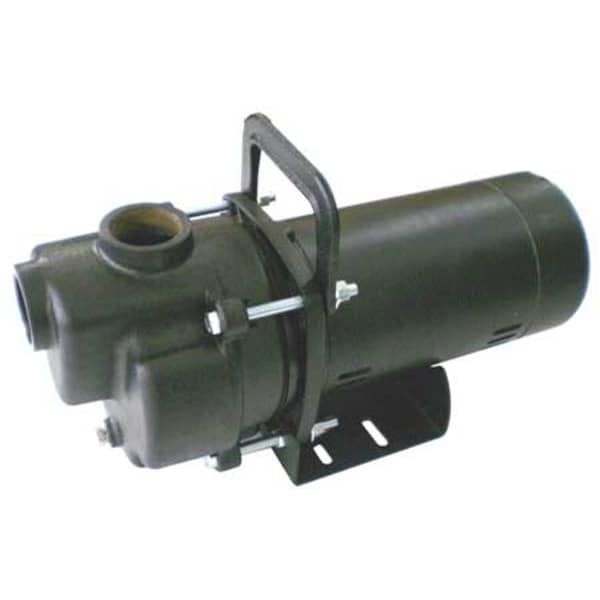

Dayton Centrifugal Pump, 1 hp, 115/230V AC, 1 Phase, 48 ft Max Head 4YKP8 - main

Centrifugal Pump, 1 hp, 115/230V AC, 1 Phase, 48 ft Max Head

  • Mfr # 4YKP8

  • Zoro # G0964275

product price: $1,214.99
/ea
Free Shipping & Returns

Key Features

Item - Self Priming Pumps
Self Priming Centrifugal Pump
HP - Pumps
1 hp
Inlet
1-1/2 in NPT
Outlet
1-1/2 in NPT
Voltage - Pumps
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4YKP8
Zoro #
G0964275
UPC #
190735338803
Country of Origin
China

Dimensions

Outlet Size - Pumps
1-1/2 in NPT
Max. Dia. Solids - Pumps
3/8 in
Inlet Size - Pumps
1-1/2 in NPT
Height
10 in
Max. Dia. Solids
3/8"
Length
17 in
Manufacturers Warranty Length
1 yr
Width
7 5/16 in
Overall Length
17 in
Overall Width
7.3 in
Overall Height
9.9 in
Solid Diameter (Maximum)
0.38 in
Compatible Intake Pipe Size
1 1/2 in
Compatible Discharge Pipe Size
1 1/2 in

Details

Item
Centrifugal Pump
Item - Self Priming Pumps
Self Priming Centrifugal Pump
HP - Pumps
1 hp
Inlet
1-1/2 in NPT
Outlet
1-1/2 in NPT
Voltage - Pumps
115/230V AC
HP
1
Phase - Pumps
1
Wetted Materials
304 Stainless Steel, Cast Iron, Ceramic, Viton,Carbon
Max. Head - Pumps
48 ft
Voltage
115/230
Volute Material
Cast Iron
Best Efficiency Range GPM @ Head
21 to 50 gpm @ 40 to 25 ft
Seal Material
Viton
Suction Lift
25 ft.
Motor Enclosure - Pumps
Open Dripproof
Max. Pressure - Pumps
22 psi
Motor RPM
3,450 RPM
Housing Material - Pumps
Cast Iron
Port Rotation - Pumps
4 Position Increments
Suction Lift - Pumps
25 ft
Max. Pressure
21 psi
Motor Type
PSC
Impeller Material
Cast Iron
Frame
56J
GPM of Water @ 20 Ft. of Head
55
GPM @ 10 PSI
52.8
Housing Material
Cast iron
Impeller Type
Semi Open
Max. Liquid Temp.
180 Degrees F
Phase
Single
Bearing Type
Ball
Duty
Continuous
GPM of Water @ 5 Ft. of Head
69
Agency Compliance
c CSA us
Max. Case Pressure
85 psi
Duty - Pumps
Continuous
Inlet Pressure
64 psi
Self-Priming
Yes
Amps
14.6/7.3
Motor Enclosure
Open Dripproof
Max. Head
48 ft.
GPM @ 20 PSI
6.6
GPM of Water @ 15 Ft. of Head
61
Port Rotation
4 Position Increments
Max. Specific Gravity
1.0
GPM @ 15 PSI
33.5
Motor Design
Capacitor-Start/Run
Hz
60
GPM of Water @ 40 Ft. of Head
22
GPM of Water @ 30 Ft. of Head
43
GPM of Water @ 10 Ft. of Head
65
Max. Temp - Pumps
180 Degrees F
Standards
cCSAus Listed
Seal Type
Mechanical
Shaft Material
Stainless Steel
Flow Rate @ 30 ft of Head (Maximum)
43 gpm
Frequency
60 Hz
Wetted Material
304 Stainless Steel, Carbon, Cast Iron, Ceramic, Viton
Best Efficiency Flow
71 gpm
Flow Rate @ 20 ft of Head (Maximum)
55 gpm
Maximum RPM
3,450 RPM
Discharge Rotation
90 Degrees Increments
Minimum Media Temperature
40 Degrees F
Maximum Feet of Head
48 ft
Duty Cycle
Continuous
For Use With Potable Systems
No
Shut Off Pressure (Maximum)
21 psi
Best Efficiency Head
25 to 40 ft
Flow Rate @ 10 ft of Head (Maximum)
65 gpm
Pump Housing Material
Cast Iron
Motor Frame Designation
56J
Impeller Design
Semi-Open
Discharge Type
NPT
Intake Type
NPT
Nameplate Voltage
115/230V AC
Horsepower
1 hp
Specific Gravity (Maximum)
1
Flow Rate @ 40 ft of Head (Maximum)
22 gpm
Minimum Flow Rate
22 gpm
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Flow Rate @ 5 ft of Head (Maximum)
69 gpm
Feet of Head (Minimum)
2 ft
Suction Lift (Maximum)
25 ft
Maximum Flow Rate
72 gpm
Flow Rate @ 15 ft of Head (Maximum)
61 gpm

Description

Centrifugal Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 1 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 ft of Head (Maximum) 22 gpm, Maximum Feet of Head 48 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 72 gpm, Flow Rate @ 5 ft of Head (Maximum) 69 gpm, Flow Rate @ 10 ft of Head (Maximum) 65 gpm, Flow Rate @ 15 ft of Head (Maximum) 61 gpm

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
