  9. Centrifugal Pump Head, 1-1/2 HP, Bronze

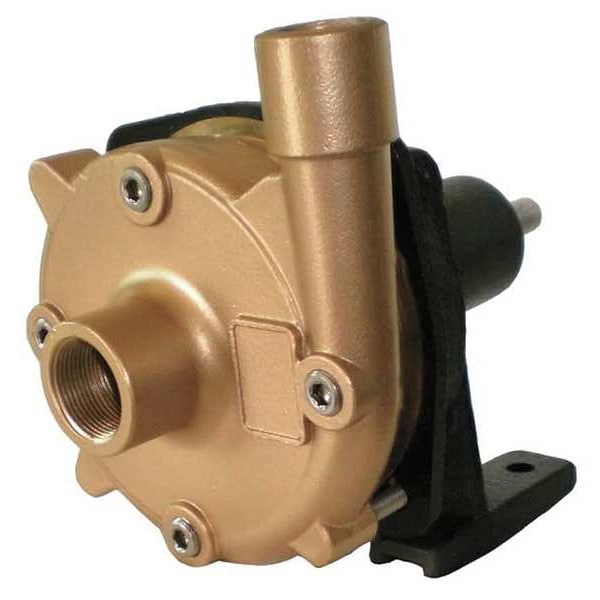

Dayton Centrifugal Pump Head, 1-1/2 HP, Bronze 10X667 - main

Centrifugal Pump Head, 1-1/2 HP, Bronze

  • Mfr # 10X667

  • Zoro # G4262212

product price: $1,004.99
/ea
Item requires special delivery charges. A $60.00 per item surcharge will be applied.

Key Features

HP Required
1 1/2 hp
Inlet
1-1/4 in
Outlet
1 in
Wetted Materials
304 SS, Bronze ,SUS316 Carbon, Ceramic, Viton
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10X667
Zoro #
G4262212
UPC #
190735110201
Country of Origin
China

Dimensions

Length
11 7/8 in
Max. Dia. Solids
1/8
Height
9 in
Manufacturers Warranty Length
1 yr
Width
7 15/16 in
Compatible Discharge Pipe Size
1 in
Solid Diameter (Maximum)
0.13 in
Shaft Outside Diameter
3/4 in
Overall Width
7.94 in
Overall Height
9 in
Sized for Horsepower
1 1/2 hp
Compatible Intake Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Overall Length
11.88 in

Details

HP Required
1 1/2 hp
Inlet
1-1/4 in
Outlet
1 in
Wetted Materials
304 SS, Bronze ,SUS316 Carbon, Ceramic, Viton
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Max. Head
103 ft
For Use With
Clear, Non-Abrasive, Non-Flammable Liquids Compatible with Pump Components
GPM of Water @ 70 Ft. of Head
32
Duty
Continuous
Impeller Type
Closed
GPM of Water @ 20 Ft. of Head
53.3
GPM of Water @ 60 Ft. of Head
37.6
Item
Pedestal Pump
Inlet Pressure
106 psi
Max. Pressure
44 psi
GPM of Water @ 40 Ft. of Head
46.3
Best Efficiency GPM @ Head
37.6 @ 60 ft
Inlet (In.)
1 1/4 in
Impeller Material
Stainless Steel
GPM of Water @ 50 Ft. of Head
42
Max. Case Pressure
150 psi
GPM of Water @ 80 Ft. of Head
25.8
Bearing Type
Ball
GPM of Water @ 5 Ft. of Head
56
Housing Material
Bronze
Max. Specific Gravity
1.0
GPM of Water @ 30 Ft. of Head
49.5
GPM of Water @ 10 Ft. of Head
55.7
GPM of Water @ 15 Ft. of Head
54.6
Shaft Material
316 Stainless Steel
Seal Type
Mechanical Type 21
Best Efficiency Flow
37.6 gpm
Pump Housing Material
Bronze
For Use With Potable Systems
No
Flow Rate @ 80 ft of Head (Maximum)
25.8 gpm
Specific Gravity (Maximum)
1
Intake Type
NPT
Flow Rate @ 40 ft of Head (Maximum)
46.3 gpm
Flow Rate @ 30 ft of Head (Maximum)
49.5 gpm
System Pressure (Maximum)
44 psi
Duty Cycle
Continuous
Feet of Head (Minimum)
5 ft
Flow Rate @ 60 ft of Head (Maximum)
37.6 gpm
Discharge Rotation
90 Degrees
Flow Rate @ 15 ft of Head (Maximum)
54.6 gpm
Flow Rate @ 10 ft of Head (Maximum)
55.7 gpm
Maximum Flow Rate
56 gpm
Wetted Material
304 Stainless Steel, Bronze, Ceramic, SUS316 Carbon, Viton
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Flow Rate @ 50 ft of Head (Maximum)
42 gpm
Maximum Feet of Head
103 ft
Priming
Manual
Flow Rate @ 70 ft of Head (Maximum)
32 gpm
Phase
Single
Discharge Type
NPT
Flow Rate @ 20 ft of Head (Maximum)
53.3 gpm
Minimum Flow Rate
25.8 gpm
NPSHr
106 psi
Impeller Design
Closed
Maximum Media Temperature
180 Degrees F
Best Efficiency Head
60 ft
Motor Mount Type
Pedestal Mount Direct Drive
Flow Rate @ 5 ft of Head (Maximum)
56 gpm
Pumping Application
Chemical Processing, Circulating Heated or Chilled Water, Liquid Transfer, Pressure Boosting

Description

Pedestal Pump, Pump Housing Material Bronze, Sized for Horsepower 1 1/2 hp, Flow Rate @ 10 ft of Head (Maximum) 55.7 gpm, Flow Rate @ 20 ft of Head (Maximum) 53.3 gpm, Flow Rate @ 30 ft of Head (Maximum) 49.5 gpm, Flow Rate @ 40 ft of Head (Maximum) 46.3 gpm, Maximum Feet of Head 103 ft, Discharge Type NPT, Intake Type NPT, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Suction Lift (Maximum) Not Applicable, Shaft Outside Diameter 3/4 in, Priming Manual, NPSHr 106 psi

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
