Shop DAYTON

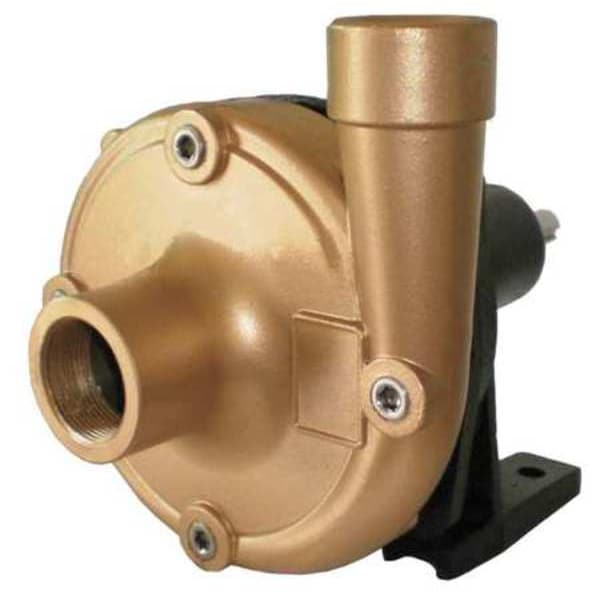

Centrifugal Pump Head, 5 HP, Bronze

  • Mfr # 10X668

  • Zoro # G4274277

product price:  $1,189.99
/ea
Free Shipping & Returns

Key Features

HP Required
5 hp
Inlet
1-1/2 in
Outlet
1-1/4 in
Wetted Materials
304 SS, Bronze,SUS316 Carbon, Ceramic, Viton
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10X668
Zoro #
G4274277
UPC #
190735110218
Country of Origin
China

Dimensions

Height
9 in
Length
12 1/8 in
Width
8 3/8 in
Max. Dia. Solids
1/8
Manufacturers Warranty Length
1 yr
Solid Diameter (Maximum)
0.13 in
Overall Length
12.13 in
Manufacturer Warranty Length
1 yr
Overall Width
8.38 in
Sized for Horsepower
5 hp
Shaft Outside Diameter
3/4 in
Compatible Intake Pipe Size
1 1/2 in
Compatible Discharge Pipe Size
1 1/4 in
Overall Height
9 in
Inlet Diameter
1 1/2 in
Discharge Diameter
1 1/4 in
Wire Rope Length
12.13 in

Details

HP Required
5 hp
Inlet
1-1/2 in
Outlet
1-1/4 in
Wetted Materials
304 SS, Bronze,SUS316 Carbon, Ceramic, Viton
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Max. Head
135 ft
For Use With
Clear, Non-Abrasive, Non-Flammable Liquids Compatible with Pump Components
Best Efficiency GPM @ Head
68 @ 80 ft
Max. Specific Gravity
1.0
GPM of Water @ 15 Ft. of Head
102
GPM of Water @ 50 Ft. of Head
88
Inlet (In.)
1 1/2 in
Max. Pressure
58 psi
GPM of Water @ 30 Ft. of Head
96
GPM of Water @ 60 Ft. of Head
82
Inlet Pressure
92 psi
Impeller Material
Stainless Steel
GPM of Water @ 20 Ft. of Head
101
GPM of Water @ 40 Ft. of Head
93
Max. Case Pressure
150 psi
GPM of Water @ 80 Ft. of Head
68
Impeller Type
Closed
GPM of Water @ 5 Ft. of Head
105
GPM of Water @ 70 Ft. of Head
75
Housing Material
Bronze
Item
Pedestal Pump
GPM of Water @ 10 Ft. of Head
104
Duty
Continuous
Seal Type
Mechanical Type 21
Shaft Material
316 Stainless Steel
Minimum Flow Rate
68 gpm
Flow Rate @ 60 ft of Head (Maximum)
82 gpm
Best Efficiency Head
80 ft
Feet of Head (Minimum)
5 ft
Discharge Rotation
90 Degrees
Maximum Flow Rate
105 gpm
Phase
Single
Flow Rate @ 40 ft of Head (Maximum)
93 gpm
Impeller Design
Closed
Pumping Application
Chemical Transfer, Water Circulation, Liquid Transfer, Booster Services
Flow Rate @ 10 ft of Head (Maximum)
104 gpm
Best Efficiency Flow
68 gpm
Flow Rate @ 1 ft of Head (Maximum)
0 gpm
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Flow Rate @ 30 ft of Head (Maximum)
96 gpm
Duty Cycle
Continuous
Flow Rate @ 50 ft of Head (Maximum)
88 gpm
Flow Rate @ 80 ft of Head (Maximum)
68 gpm
Motor Mount Type
Pedestal Mount Direct Drive
Maximum Media Temperature
180 Degrees F
Specific Gravity (Maximum)
1
Wetted Material
304 Stainless Steel, Bronze, Ceramic, SUS316 Carbon, Viton
Flow Rate @ 15 ft of Head (Maximum)
102 gpm
Flow Rate @ 70 ft of Head (Maximum)
75 gpm
NPSHr
212.52 ft
Pump Housing Material
Bronze
Priming
Manual
Flow Rate @ 5 ft of Head (Maximum)
105 gpm
For Use With Potable Systems
No
Flow Rate @ 20 ft of Head (Maximum)
101 gpm
Intake Type
NPT
Discharge Type
NPT
System Pressure (Maximum)
58 psi
Maximum Feet of Head
135 ft
Chemical Compatibility
Non-Abrasive Liquids, Non-Flammable Liquids
Flow Rate (Minimum)
68 gpm
Feet of Head (Maximum)
135 ft
Shaft Seal Material
Carbon/Ceramic/FKM/Stainless Steel
Shut Off Pressure - Maximum
58 psi
Discharge Rotation Increments
0 Degrees
Product Type
Pedestal Pump
Flow Rate (Maximum)
105 gpm
Shaft Seal Type
Mechanical
Media Temperature - Maximum
180 Degrees F

Description

Pedestal Pump, Pump Housing Material Bronze, Sized for Horsepower 5 hp, Flow Rate @ 10 ft of Head (Maximum) 104 gpm, Flow Rate @ 20 ft of Head (Maximum) 101 gpm, Flow Rate @ 30 ft of Head (Maximum) 96 gpm, Flow Rate @ 40 ft of Head (Maximum) 93 gpm, Maximum Feet of Head 135 ft, Discharge Type NPT, Intake Type NPT, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/4 in, Suction Lift (Maximum) Not Applicable, Shaft Outside Diameter 3/4 in, Priming Manual, NPSHr 212.52 ft
