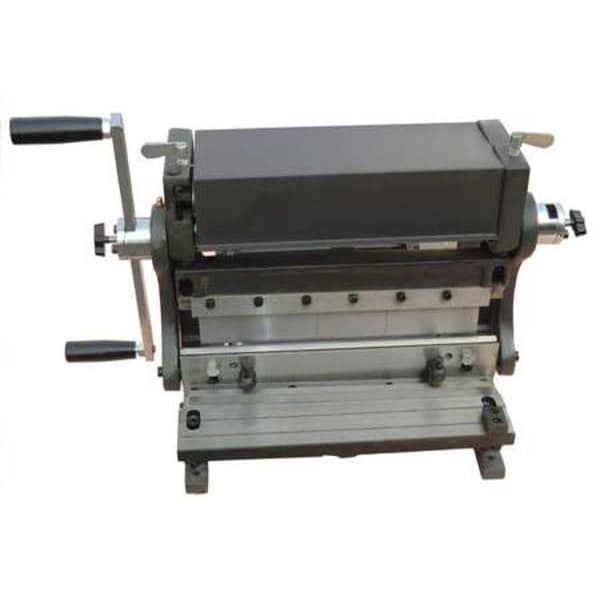

Dayton Combination Machine, 12 in Bending Length, 12 in Cutting Width, Min. 1 1/2 in Rolls 12G596 - main

Combination Machine, 12 in Bending Length, 12 in Cutting Width, Min. 1 1/2 in Rolls

  • Mfr # 12G596

  • Zoro # G3905781

product price: $649.99
/ea
Free Shipping & Returns

Key Features

Bending Length (In.)
12 in
Cutting Width (In.)
12 in
Rolls
Min. 1 1/2 in
Capacity of Mild Steel (Gauge)
20
Application
Bender, Roller, Shear
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12G596
Zoro #
G3905781
UPC #
190735114834
Country of Origin
China

Dimensions

Bending Length (In.)
12 in
Cutting Width (In.)
12 in
Finger Width (In.)
1-4
Bending Length
12 in
Finger Width
1 in, 2 in, 3 in, 4 in
Minimum Roller Diameter
1.54 in

Details

Item
Combination Machine
Rolls
Min. 1 1/2 in
Capacity of Mild Steel (Gauge)
20
Application
Bender, Roller, Shear
Die
Carbon Steel, Steel Male, Sizes 1 in , 2 in , 2 in , 3 in and 4 in , Continuous Female V Shaped Forming
Construction
Cast iron
Blade
Dual Edge Adjustable And Reversible, Made Of Tool Steel
Features
High Carbon, Dual-edge Reversible Shear Blade Can Be Sharpened. Blade Is Adjustable After Wear Or Resharpening. Hold-down Is Positioned To Allow Visual Location Of The Shear Line. Bends 20 ga Mild Steel With High Carbon, Carbon Steel Male Dies, Sizes 1 in, 2 in, 2 in, 3 in, And 4 in Continuous Female "v"-shaped Forming Die. Three Rollers, Each 1 1/2 in X 12 in, With Wire Forming Grooves. Rolls A Minimum 1 1/2 in Diameter To An Unlimited Maximum. Height Stop-block. Two Extension Bars With 90 Degrees Angle. Iron Adjustable Length Stop.
Brake Type
Box and Pan
Roller Capacity Aluminum
15 ga
Roller Capacity Stainless Steel
24 ga
Brake Capacity Stainless Steel
24 ga
Shear Capacity Aluminum
15 ga
Shear Capacity Mild Steel
19 ga
Number of Rollers
3
Brake Capacity Mild Steel
19 ga
Roller Capacity Mild Steel
19 ga
Shear Capacity Stainless Steel
24 ga
Brake Capacity Aluminum
16 ga
Power Source
Manual
Actuation
Hand Lever
Maximum Bend Angle
90 Degrees

Description

Combination Machine, Brake Capacity Aluminum 16 ga, Brake Capacity Mild Steel 19 ga, Brake Capacity Stainless Steel 24 ga, Brake Type Box and Pan, Maximum Bend Angle 90 Degrees , Finger Width 1 in, 2 in, 3 in, 4 in, Shear Capacity Aluminum 15 ga, Shear Capacity Mild Steel 19 ga, Shear Capacity Stainless Steel 24 ga, Roller Capacity Aluminum 15 ga, Roller Capacity Mild Steel 19 ga, Roller Capacity Stainless Steel 24 ga, Number of Rollers 3, Minimum Roller Diameter 1.54 in
