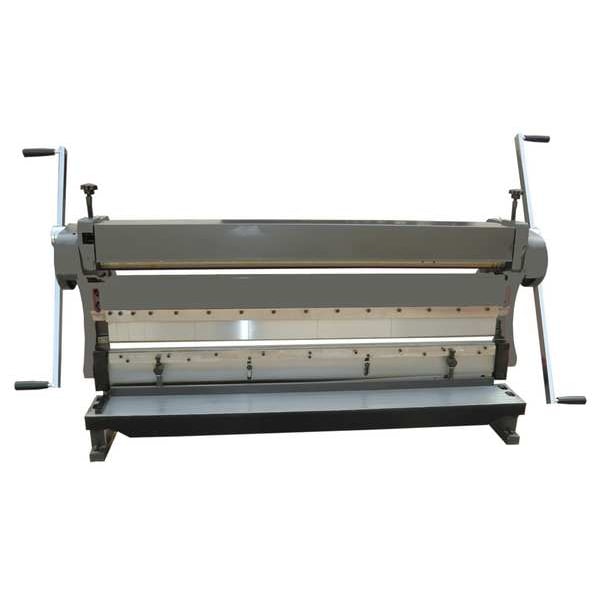

Dayton Combination Machine, 52 in Bending Length, 52 in Cutting Width, Min. 2 3/8 in Rolls 12G597 - main

Combination Machine, 52 in Bending Length, 52 in Cutting Width, Min. 2 3/8 in Rolls

  • Mfr # 12G597

  • Zoro # G4915251

product price: $4,010.99
/ea
Additional $545.00 delivery surcharge applies per item.
See details

Key Features

Bending Length (In.)
52 in
Cutting Width (In.)
52 in
Rolls
Min. 2 3/8 in
Capacity of Mild Steel (Gauge)
16
Application
Bender, Roller, Shear
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12G597
Zoro #
G4915251
UPC #
190735114841
Country of Origin
China

Dimensions

Bending Length (In.)
52 in
Cutting Width (In.)
52 in
Finger Width (In.)
1 in, 1 1/2 in, 2 in, 2 1/2 in, 4 in, 7 in, 9 in, 10 in, 15 in
Finger Width
1 in, 1 1/2 in, 2 in, 2 1/2 in, 4 in, 7 in, 9 in, 10 in, 15 in
Minimum Roller Diameter
2.36 in
Bending Length
52 in

Details

Item
Combination Machine
Rolls
Min. 2 3/8 in
Capacity of Mild Steel (Gauge)
16
Application
Bender, Roller, Shear
Construction
Cast iron
Features
High Carbon, Dual-edge Reversible Shear Blade Can Be Sharpened. Blade Is Adjustable After Wear Or Resharpening. Hold-down Is Positioned To Allow Visual Location Of The Shear Line. Bends 16 ga Mild Steel With High Carbon, Carbon Steel Male Dies, Sizes 1 in, 1 1/2 in, 2 in, 2 1/2 in, 4 in, 7 in, 9 in, 10 in, And 15 in Continuous Female "v"-shaped Forming Die. Three Rollers, Each 2 3/8 in X 52 in, With Wire Forming Grooves. Rolls A Minimum 2 3/8 in Diameter To An Unlimited Maximum. Height Stop-block. Two Extension Bars With 90 Degrees Angle. Iron Adjustable Length Stop.
Die
Carbon Steel, Steel Male, Sizes 1 in , 1 1/2 in , 2 in , 2 1/2 in , 4 in , 7 in , 9 in , 10 in , And 15 in , Continuous Female V Shaped Forming
Blade
Dual Edge Adjustable And Reversible, Made Of Tool Steel
Number of Rollers
3
Shear Capacity Aluminum
12 ga
Roller Capacity Mild Steel
16 ga
Brake Capacity Stainless Steel
21 ga
Roller Capacity Stainless Steel
22 ga
Roller Capacity Aluminum
12 ga
Brake Capacity Aluminum
14 ga
Brake Capacity Mild Steel
16 ga
Brake Type
Box and Pan
Power Source
Manual
Actuation
Hand Lever
Maximum Bend Angle
90 Degrees
Shear Capacity Stainless Steel
22 ga
Shear Capacity Mild Steel
16 ga

Description

Combination Machine, Brake Capacity Aluminum 14 ga, Brake Capacity Mild Steel 16 ga, Brake Capacity Stainless Steel 21 ga, Brake Type Box and Pan, Maximum Bend Angle 90 Degrees , Finger Width 1 in, 1 1/2 in, 2 in, 2 1/2 in, 4 in, 7 in, 9 in, 10 in, 15 in, Shear Capacity Aluminum 12 ga, Shear Capacity Mild Steel 16 ga, Shear Capacity Stainless Steel 22 ga, Roller Capacity Aluminum 12 ga, Roller Capacity Mild Steel 16 ga, Roller Capacity Stainless Steel 22 ga, Number of Rollers 3
