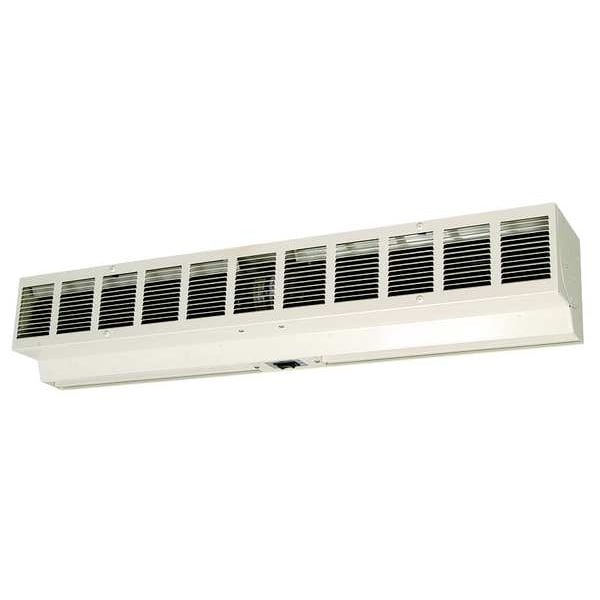

Dayton Compact Air Curtain 4YP02 - main

Compact Air Curtain

  • Mfr # 4YP02

  • Zoro # G1131523

product price: $540.99
/ea
Free Shipping & Returns

Key Features

Width
60 in
Phase
1
Max. Mounting Height
8 ft
Air Curtain Finish
Painted
Number of Motors
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4YP02
Zoro #
G1131523
UPC #
190735339053
Country of Origin
Thailand

Dimensions

Width
60 in
Max. Mounting Height
8 ft
Height
7 3/8 in
Air Curtain Max. Door Width
5 ft
Depth
6 3/4 in
Overall Width
60 in
Overall Height
7 3/8 in
Overall Depth
6 3/4 in
Power Cord Length
6 ft
For Frame Opening Width
5 ft
Mounting Hole Diameter
1/4 in
Mounting Height for Insect Control
8 ft
Nozzle Width
2 1/2 in
Mounting Height for Temperature Control
8 ft

Details

Item
Unhtd 7.5"H 60"W 6.8"D Steel Air Curtain
Phase
1
Air Curtain Finish
Painted
Number of Motors
1
Air Curtain Air Velocity
1800/1350 fpm
Voltage
120
Air Curtain Air Volume
1700/1280 cfm
Air Curtain dBA @ 10 Feet
66 dBA
Air Curtain Heated
No
Air Curtain Housing Material
Steel
Hz
60
Max. Amps
1.9
Number of Speeds
2
Motor HP
1/8 hp
Housing Color
Light Tan
Max. RPM
1,600 RPM
Air Curtain Item
Low Profile Air Curtain
Motor Type
Permanent Split Capacitor
Motor Enclosure
Totally Enclosed
Control Type
2-Speed Unit Mounted Rocker Switch
Standards
ETL Listed
Finish
Painted
Housing Material
Steel
Minimum Operating Temperature
Not Available
Maximum Speed
1,600 RPM
Sanitation Certified
No
Frequency
60 Hz
Heated/Not Heated
Not Heated
Power Consumption
0.22 kW
Maximum Air Velocity
1,800 fpm
Profile Type
Low Profile
Ultraviolet Air Cleaning
No
Washdown
No
Motor Horsepower per Motor
1/8 hp
Motor IP Rating
IP44
Nameplate Voltage
120V AC
For Outdoor Use
No
Drive Type
Direct Drive
Maximum Air Volume
1,700 cfm
Sound Level @ 10 ft
66 dBA
Grille Material
Steel
Assembly
Assembled
Maximum Operating Temperature
Not Available
NEMA Plug Configuration
5-15P
Full Load Current
1.9 A
Electrical Connection
Plug-In
HEPA Air Cleaning
No
Includes Mounting Fasteners
No
Type of Entrance
Front Customer Door

Description

Unhtd 7.5 In.H 60 In.W 6.8 In.D Steel Air Curtain, For Frame Opening Width 5 ft, Mounting Height for Temperature Control 8 ft, Overall Depth 6 3/4 in, Overall Height 7 3/8 in, Overall Width 60 in, Profile Type Low Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 1,800 fpm, Mounting Height for Insect Control 8 ft, Maximum Air Volume 1,700 cfm, Nameplate Voltage 120V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 66 dBA, Housing Color Light Tan, Phase 1
