Shop DAYTON

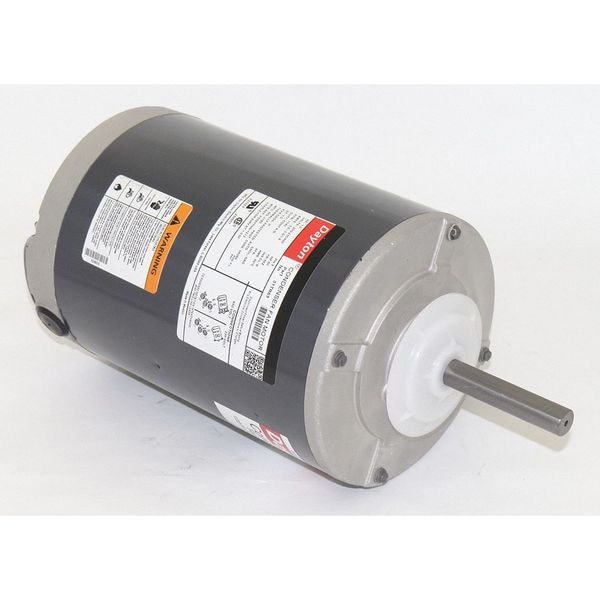

Condenser Fan Motor, 1 hp

  • Mfr # 31TR63

  • Zoro # G8571175

product price:  $694.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31TR63
Zoro #
G8571175
UPC #
190735255698
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
3 7/16 in
Overall Length
15 3/4 in
Body Dia.
6 1/2 in
Stud Size
#10-32
Length Less Shaft
12 5/16 in
Lead Length
6 in
Bolt Circle Dia.
5 7/8 in
Mounting Stud Thread Size
#10-32
Shaft Diameter
5/8 in
Frame Size
56Z
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.5 in
Wire Rope Length
15 3/4 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
200-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Z
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
50 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Hz
60 Hz
Features
Quick Disconnect Design
Motor Shaft Design
Flat
Application
Condenser Fan
Stud Quantity
4
Full Load Amps
3.6-3.6/1.8 A
Motor Service Factor
1
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Nominal Efficiency
83.4 %
Duty
Continuous
Motor Bearings
Ball
Capacitor Required
Capacitor Not Required
Ins. Class
B
Standards
CSA 258525, UL E47479
Duty Cycle
Continuous
Inverter Rated
Yes
Mounting
Band
Drive Type
Direct Drive
Number of Speeds
1
Inverter Rating
Inverter Rated
Shaft Design
Flat
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Mounting Position
Horizontal/Vertical Shaft Up
Insulation Class
B
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
50 Degrees C
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
3.6-3.6/1.8 A
Sub Application
Condenser Fan

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 3.6-3.6/1.8 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
