Shop DAYTON

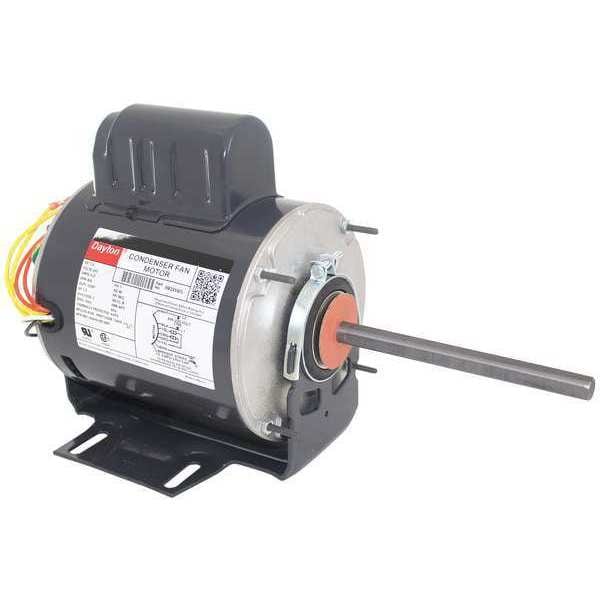

Condenser Fan Motor, 1/2 hp

  • Mfr # 3M295

  • Zoro # G0306801

product price:
$
216.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3M295
Zoro #
G0306801
UPC #
190735291719
Country of Origin
Mexico

Dimensions

Lead Length
30 in
Length Less Shaft
7 7/16 in
Stud Size
8-32UNC-2A x 3/4 in
Bolt Circle Dia.
5 1/8 in
Overall Length
13 7/16 in
Shaft Length
6 in
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Body Diameter
5.6 in
Frame Size
56YZ
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/2 in
Wire Rope Length
13 7/16 in
Length
13 7/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
0-1,000
No. of Speeds
1
Voltage
230V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Motor Shaft Design
Double-Flat
Max. Ambient Temp.
60 Degrees C
Capacitor Required
Capacitor Included
Stud Quantity
4
Motor Thermal Protection
Auto
Full Load Amps
3.27 A
Motor Service Factor
1
Features
Reversing Plug, Totally Enclosed Shaft Endshield and Shell
Application
Condenser Fan
Motor Mounting Position
Horizontal or Vertical Shaft Up
Nominal Efficiency
63.3 %
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Duty
Continuous
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Bearings
Ball
Item
Condenser Fan Motor
Hz
60 Hz
Ins. Class
B
Motor Sub Application
Condenser Fan
Motor Application
HVAC/R
Nameplate RPM
825
Duty Cycle
Continuous
Mounting
Cradle Base
Drive Type
Direct Drive
Shaft Design
Double Flat
Motor Enclosure Type
Open Air Over
Frequency
60 Hz
Number of Speeds
1
Sub Application
Condenser Fan
Insulation Class
B
Full Load Current @ 60 Hz
3.27 A
Ambient Temperature - Maximum
60 Degrees C
Product Type
Condenser Fan Motor
Mounting Position
Horizontal/Vertical Shaft Up
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 230V AC, 3.27 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal/Vertical Shaft Up, Shaft Length 6 in
