Shop DAYTON

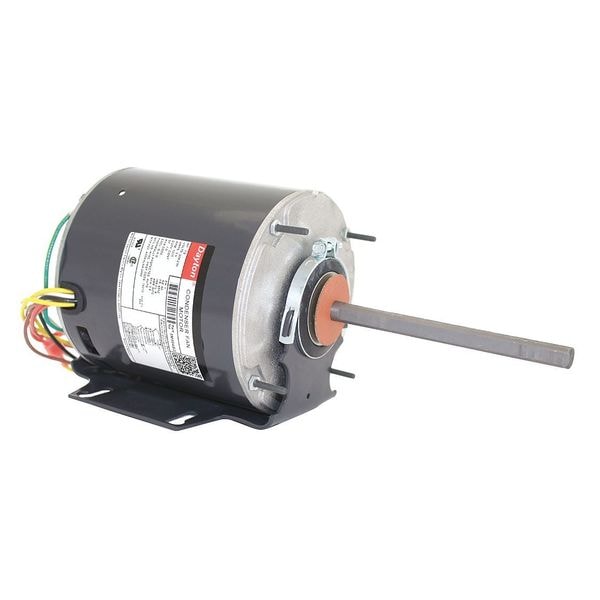

Condenser Fan Motor, 1/2 hp

  • Mfr # 3M994

  • Zoro # G2698157

product price:  $341.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3M994
Zoro #
G2698157
UPC #
190735292471
Country of Origin
Multiple

Dimensions

Bolt Circle Dia.
5 1/8 in
Lead Length
20 in
Shaft Length
6 in
Body Dia.
5 5/8 in
Overall Length
12 15/16 in
Shaft Dia.
1/2 in
Length Less Shaft
5 7/8 in
Stud Size
8-32 UNF-2A x 3/4 in (Shaft End)
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Frame Size
48YZ
Mounting Stud Thread Size
#8-32
Wire Rope Length
12 15/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Stud Quantity
4
Motor Thermal Protection
Auto
Item
Condenser Fan Motor
Includes
Capacitor
Full Load Amps
3.1 A
Motor Service Factor
1
Hz
60 Hz
Motor Mounting Position
Horizontal or Vertical Shaft Up
Application
Condenser Fan
Motor Bearings
Ball
Ins. Class
B
Motor Shaft Design
Double-Flat
Max. Ambient Temp.
60 Degrees C
Nameplate RPM
1,075
Nominal Efficiency
70.1 %
Duty
Continuous
Features
Reversing Plug, Totally Enclosed Shaft Endshield
Motor Application
HVAC/R
Capacitor Required
Capacitor Included
Motor Sub Application
Condenser Fan
Standards
CSA Certified (258501), UL Recognized (E37403)
Duty Cycle
Continuous
Mounting
Cradle Base
Bearing Type
Ball
Shaft Design
Double Flat
Number of Speeds
1
Sub Application
Condenser Fan
Mounting Position
Horizontal/Vertical Shaft Up
Ambient Temperature - Maximum
60 Degrees C
Motor Enclosure Type
Open Air Over
Frequency
60 Hz
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Full Load Current @ 60 Hz
3.1 A
Product Type
Condenser Fan Motor

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 3.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal/Vertical Shaft Up, Shaft Length 6 in
