  13. Convection Ceiling Heater, 277V, 13,700Btu
Shop All Electric Ceiling Heaters
Dayton

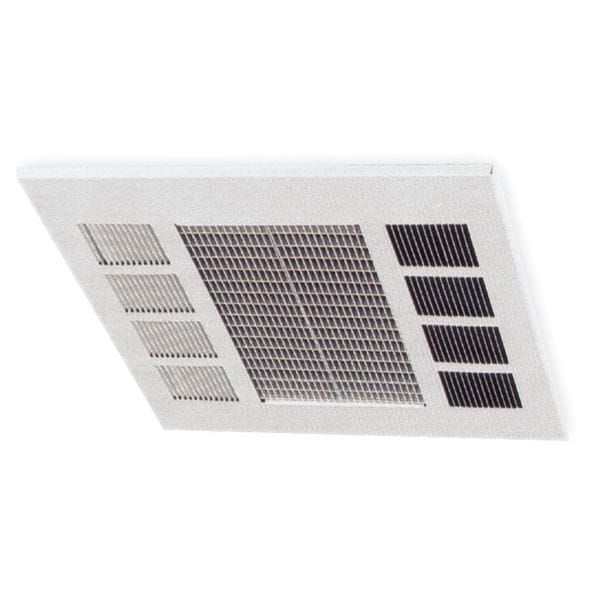

Convection Ceiling Heater, 277V, 13,700Btu

product price: $843.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Heater Voltage 277VAC
  • kW 4/3/2
  • BtuH 13,700/10,200/6800
  • Phase 1
See all product information

Product Information

Dimensions

Length 23-3/4"
Width 23-3/4"
Height 5-3/4"
Manufacturers Warranty Length 1 yr Limited, 5 yr Elements
Overall Height 5 3/4 in
Overall Length 23 3/4 in
Overall Width 23 3/4 in
Overall Dimensions - L x W x D 23-3/4 in x 23-3/4 in x 5-3/4 in
Overall Depth 7 in

Details

Promotion Restriction Not eligible for promotion
Item Electric Ceiling Panel Heater
Heater Voltage 277VAC
kW 4/3/2
BtuH 13,700/10,200/6800
Phase 1
Amps 14.4/10.8/7.2
Mounting Type Recessed
Finish Neutral Gray Baked Enamel Electrostatic Painting
Watts 4000/3000/2000
Air Temp. Rise 51 Degrees F
Standards UL Listed, cUL Listed
Hz 60
Features Adjustable Directional Airflow
Voltage 277V AC
Heating Capacity 6,800/10,200/13,700 BtuH
Frequency 60 Hz
Air Flow 300 cfm
Heating Method Fan Forced
Housing Material Steel
Housing Color Gray
Thermostat Included No
Amperage 14.4A/10.8A/7.2A
Control Type Thermostat
Voltage, Phase 277V AC, 1-phase
Wattage Output 2000W/3000W/4000W
Heater Mounting Position Vertical Burn
Housing Finish Baked Enamel

Description

Electric Ceiling Panel Heater, Overall Length 23 3/4 in, Overall Width 23 3/4 in, Overall Depth 7 in, Overall Height 5 3/4 in, 1 Phase, Voltage 277V AC, Wattage Output 2000W/3000W/4000W, Housing Color Gray, Heating Method Fan Forced, Heating Capacity 6,800/10,200/13,700 BtuH, Mounting Type Recessed, Thermostat Included No, Air Flow 300 cfm, Air Temp. Rise 51 Degrees F, Amperage 14.4A/10.8A/7.2A, Frequency 60 Hz, Control Type Thermostat, Heater Mounting Position Vertical Burn
