  9. Convertible Jet Pump, CI, 1-1/2HP, 115/230V
Dayton Convertible Jet Pump, CI, 1-1/2HP, 115/230V 5UXK6 - main

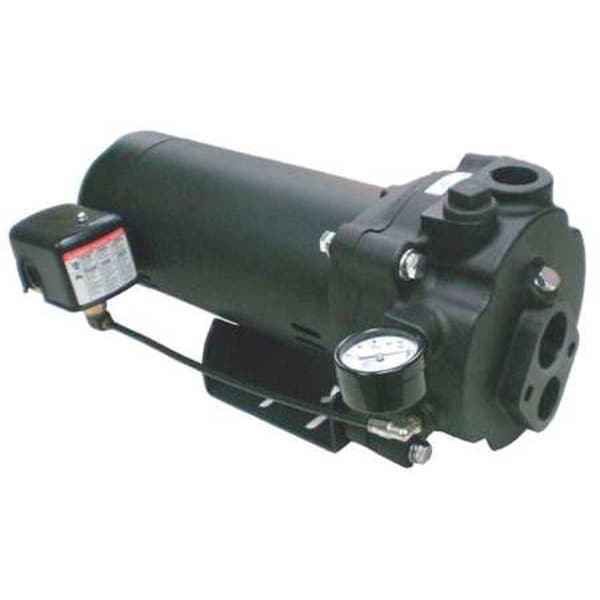

Convertible Jet Pump, CI, 1-1/2HP, 115/230V

  • Mfr # 5UXK6

  • Zoro # G0798235

product price: $735.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Amps
21.5/11.0
Flow Rate @ 10 Ft. Lift @ 40 PSI
23.6 gpm
Body Material
Cast Iron
Max. Suction Lift
140 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5UXK6
Zoro #
G0798235
UPC #
190735353455
Country of Origin
China

Dimensions

Height (In.)
8.6875
Width (In.)
9.8125
Length (In.)
17.5
Overall Height
8 11/16 in
Discharge Dia.
1 in
Inlet Dia.
1 1/4 in
Overall Length
17 1/2 in
Overall Width
9 13/16 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
1 1/4 in
Discharge Diameter
1 in

Details

HP
1 1/2 hp
Amps
21.5/11.0
Flow Rate @ 10 Ft. Lift @ 40 PSI
23.6 gpm
Body Material
Cast Iron
Max. Suction Lift
140 ft
Includes
Requires Ejector Sold Separately (see accessories depending on application)
Flow Rate @ 50 Ft. Lift @ 40 PSI
14 gpm
Inlet
1-1/4 in NPT
Discharge
1 in NPT
Ejector Included
No
Material of Construction
cast iron
Pressure Switch Setting
30 to 50 psi
Max. Case Pressure (PSI)
123
Item
Convertible Well Jet Pump
Compliance
CSA-US
Suction Lift (Ft.)
140
Voltage
115/230
Shut Off (PSI)
82
Motor Type
Capacitor Start
Outlet
1" NPT
GPM of Water @ 70 Ft @ 30, 50 PSI
11.3/9.3
Seal Type
Mechanical
GPM of Water @ 10 Ft @ 30, 50 PSI
19.8/19.2
GPM of Water @ 20 Ft @ 30, 50 PSI
14.5/14.2
Max. Inlet Pressure (PSI)
123
Motor Enclosure
ODP
Max. Inlet Pressure
123
Shut Off Pressure
82 psi
Inlet Standard
NPT
Flow Rate @ 50 Ft. Lift @ 30 PSI
17.1 gpm
Flow Rate @ 10 Ft. Lift @ 30 PSI
23.8 gpm
Rated Voltage
115/230V AC
Discharge Standard
NPT
Max. Case Pressure
123 psi
Flow Rate @ 10 Ft. Lift @ 50 PSI
23.5 gpm
Flow Rate @ 20 Ft. Lift @ 50 PSI
14.2 gpm
Flow Rate @ 50 Ft. Lift @ 50 PSI
9.4 gpm
Flow Rate @ 20 Ft. Lift @ 30 PSI
14.5 gpm
Standards
CSA C US
Application
Transfer
Horsepower
1 1/2 hp
Shut Off Pressure - Maximum
82 psi
Series
JSI
Motor Enclosure Design
Open Drip Proof
Suction Lift - Maximum
140 ft
Inlet Gender
Female
Includes Ejector
No Ejector Included
Inlet Pressure - Maximum
75 psi
Discharge Gender
Female
Media Temperature - Maximum
35 Degrees C
Phase
Single
Power Source
Corded Electric
Product Type
Convertible Well Jet Pump
Pump Technology
Centrifugal
Priming
Self-Priming
Full Load Current
21.5/11.0 A
Pressure Switch Setting - Minimum
30 psi
Installation
Floor Standing
Case Pressure - Maximum
123 psi
For Media Type
Clear Water
Pressure Switch Setting - Maximum
50 psi
Flow Rate - Maximum
27.4 gpm
Best Efficiency Head
140 ft
Media Temperature - Minimum
5 Degrees C
Frequency
60 Hz

Description

Convertible Well Jet Pump, HP 1 1/2 hp, Rated Voltage 115/230V AC, Amps 21.5/11.0, Ejector Included No, Flow Rate @ 10 Ft. Lift @ 30 PSI 23.8 gpm, Flow Rate @ 10 Ft. Lift @ 40 PSI 23.6 gpm, Flow Rate @ 10 Ft. Lift @ 50 PSI 23.5 gpm, Flow Rate @ 20 Ft. Lift @ 30 PSI 14.5 gpm, Flow Rate @ 20 Ft. Lift @ 50 PSI 14.2 gpm, Flow Rate @ 50 Ft. Lift @ 30 PSI 17.1 gpm, Flow Rate @ 50 Ft. Lift @ 40 PSI 14 gpm, Flow Rate @ 50 Ft. Lift @ 50 PSI 9.4 gpm, Flow Rate @ 80 Ft. Lift @ 30 PSI Not Applicable
