Shop DAYTON

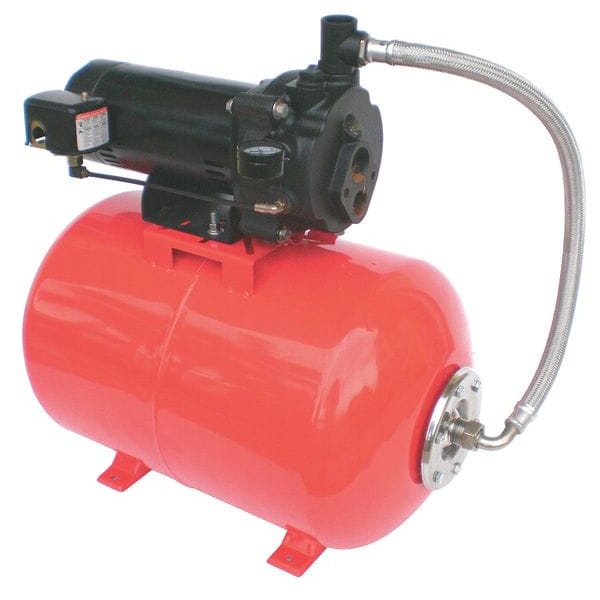

Convertible Jet Pump Sys, 3/4HP, 115/230V

  • Mfr # 5UXL2

  • Zoro # G1518711

product price:  $1,130.99
/ea
Additional $45.00 delivery surcharge applies per item.
See details

Key Features

HP
3/4 hp
Amps
18/9
Flow Rate @ 10 Ft. Lift @ 40 PSI
14.9 gpm
Max. Suction Lift
110 ft
Includes
Pump, Tank
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UXL2
Zoro #
G1518711
UPC #
190735353516
Country of Origin
China

Dimensions

Length (In.)
29.375
Height (In.)
24.1875
Width (In.)
15.1875
Inlet Dia.
1 1/4 in
Overall Height
26 31/32 in
Overall Width
15 5/32 in
Overall Length
28 5/8 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
1 1/4 in
Discharge Diameter
1 in
Wire Rope Length
28 5/8 in

Details

HP
3/4 hp
Amps
18/9
Flow Rate @ 10 Ft. Lift @ 40 PSI
14.9 gpm
Max. Suction Lift
110 ft
Includes
Pump, Tank
Tank Capacity
17 gal
Inlet
1 1/4 in NPT
Discharge
1 in NPT
Item
Convertible Jet Pump System
GPM of Water @ 25 Ft @ 30, 50 PSI
8.4/7.8
Max. Case Pressure (PSI)
123
Voltage
115/230
Suction Lift (Ft.)
110
Tank (Gal.)
17
GPM of Water @ 10 Ft @ 30, 50 PSI
15.2/14.3
Max. Inlet Pressure (PSI)
123
GPM of Water @ 70 Ft @ 30, 50 PSI
8.5/5.5
Shut Off (PSI)
65
GPM of Water @ 5 Ft @ 30, 50 PSI
17/15.8
GPM of Water @ 15 Ft @ 30, 50 PSI
13.1/12.5
Seal Type
Mechanical
Compliance
CSA-US
Tank PSI
28
GPM of Water @ 20 Ft @ 30, 50 PSI
11.1/10.1
Motor Type
Capacitor Start
Outlet
1" NPT
Rated Voltage
115/230V AC
Inlet Standard
NPT
Flow Rate @ 10 Ft. Lift @ 30 PSI
15 gpm
Tank Bladder Pressure
28 psi
Discharge Standard
NPT
Max. Inlet Pressure
123 psi
Flow Rate @ 10 Ft. Lift @ 50 PSI
14.1 gpm
Shut Off Pressure
65 psi
Application
Transfer
Standards
CSA/CUS
Suction Lift - Maximum
110 ft
Frequency
60 Hz
For Media Type
Clear Water
Pressure Switch Setting - Maximum
50 psi
Pump Technology
Centrifugal
Shut Off Pressure - Maximum
65 psi
Pressure Switch Setting - Minimum
30 psi
Inlet Pressure - Maximum
123 psi
Installation
Floor Standing
Phase
Single
Horsepower
3/4 hp
Full Load Current
18/9 A
Product Type
Convertible Well Jet Pump System
Inlet Gender
Female
Includes Ejector
No Ejector Included
Power Source
Corded Electric
Flow Rate - Maximum
18.2 gpm
Media Temperature - Maximum
90 Degrees F
NSF Certifications for Food and Drinking Water
NSF 61
Media Temperature - Minimum
5 Degrees C
Discharge Gender
Female
Series
JSI
Priming
Self-Priming
Power Source - TS Only
Corded Electric

Description

Convertible Jet Pump System, Material of Construction Cast Iron, 3/4 HP, Voltage 115/230, Inlet 1 1/4 In. NPT, Outlet 1 In. NPT, Amps 18/9, Tank (Gal.) 17, Tank PSI 28, Shut Off (PSI) 65, Max. Inlet Pressure (PSI) 123, Max. Case Pressure (PSI) 123, Motor Type Capacitor Start, Seal Type Mechanical, Suction Lift (Ft.) 110, Length (In.) 29.375, Width (In.) 15.1875, Height (In.) 24.1875, Compliance CSA-US
