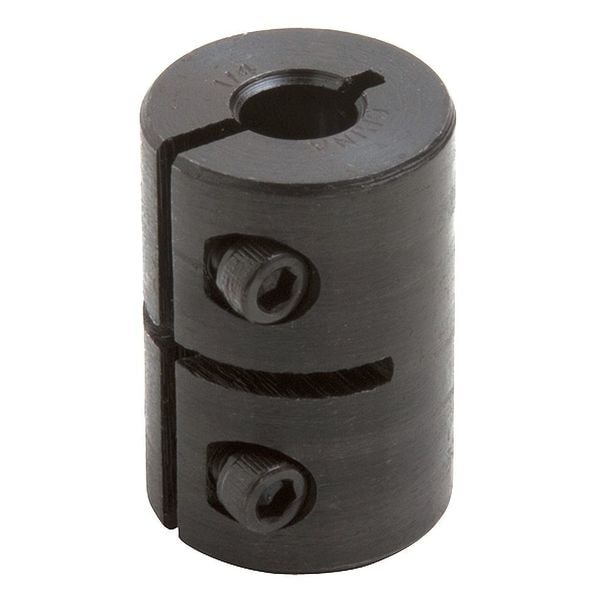

Dayton Coupling, Rigid Steel 3ZN29 - main

Coupling, Rigid Steel

  • Mfr # 3ZN29

  • Zoro # G2796297

product price: $15.59
/ea

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
Outside Dia.
5/8 in
Overall Length
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3ZN29
Zoro #
G2796297
UPC #
190735296974
Country of Origin
China

Dimensions

Bore Dia.
1/4 in
Outside Dia.
5/8 in
Overall Length
1 in
Screw Size (In.)
#4-40 x 3/8
Screw Size
#4-40
Bore Diameter 2
1/4 in
Different Bore Sizes
No
Bore Diameter 1
1/4 in
Screw Thread Size
#4-40
Clearance Diameter
0.74 in
Coupling Outside Diameter
11/16 in

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
With Keyway / Without Keyway
Without Keyway
Finish
black oxide
Max. Torque (In.-Lbs.)
25
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Material
Steel
Machined From
Bar Stock
Design
Four Vibration Resistant Socket Capscrews, Two Setscrews
Type
One Piece Clamp Type, Without Keyway
Max. Torque
25 in-lb
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Provides
Extra Holding Power for Higher Load Applications without Marring Shafts
Shaft Locking Type
Clamp On
Bore Type
Round
Maximum Torque
25 in-lb
Coupling Construction
One-Piece
Coupling Material
Carbon Steel
Zero Backlash
Yes
Coupling Material Finish
Black Oxide
Maximum Speed
4,000 RPM

Description

Rigid Shaft Coupling, Bore Diameter 1 1/4 in, Bore Diameter 2 1/4 in, Bore Type Round, Clearance Diameter 0.74 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 11/16 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter Not Applicable, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter Not Applicable, Maximum Speed 4,000 RPM, Maximum Torque 25 in-lb
