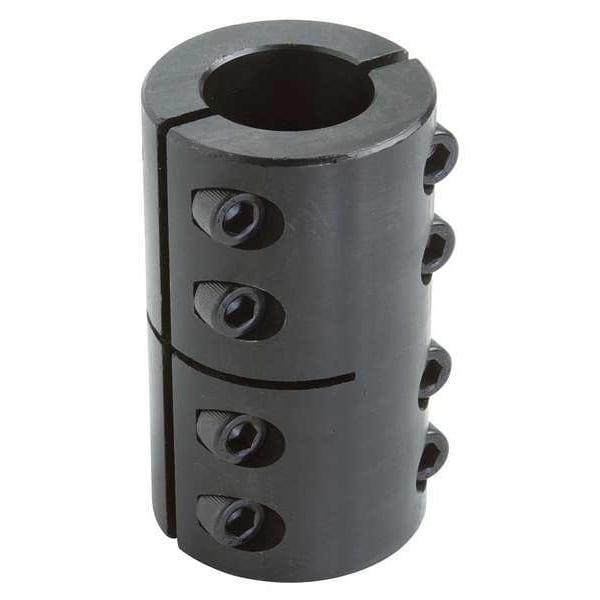

Dayton Coupling, Rigid Steel 3ZN44 - main

Coupling, Rigid Steel

  • Mfr # 3ZN44

  • Zoro # G0685501

product price: $27.79
/ea

Key Features

Shaft Locking Type - Couplings
2 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
Outside Dia.
1 1/8 in
Finish
black oxide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3ZN44
Zoro #
G0685501
UPC #
190735297063
Country of Origin
China

Dimensions

Bore Dia.
1/2 in
Outside Dia.
1 1/8 in
Overall Length
1 3/4 in
Screw Size
#8-32
Screw Size (In.)
#8-32 x 1/2
Bore Diameter 1
1/2 in
Bore Diameter 2
1/2 in
Clearance Diameter
1.22 in
Coupling Outside Diameter
1 1/8 in
Screw Thread Size
#8-32
Different Bore Sizes
No

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
2 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
With Keyway / Without Keyway
Without Keyway
Finish
black oxide
Max. Torque
480 in-lb
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Provides
Extra Holding Power for Higher Load Applications without Marring Shafts
Material
Black Oxide Steel
Design
Eight Vibration Resistant Socket Capscrews, Can be Installed without Disassembling any Machinery or Components
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Machined From
Bar Stock
Type
Two Piece Clamp Type, Without Keyway
Max. Torque (In.-Lbs.)
480
Coupling Construction
Two-Piece
Maximum Torque
480 in-lb
Coupling Material
Carbon Steel
Maximum Speed
4,000 RPM
Zero Backlash
Yes
Bore Type
Round
Coupling Material Finish
Black Oxide
Shaft Locking Type
Clamp On

Description

Rigid Shaft Coupling, Bore Diameter 1 1/2 in, Bore Diameter 2 1/2 in, Bore Type Round, Clearance Diameter 1.22 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 1/8 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter Not Applicable, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter Not Applicable, Maximum Speed 4,000 RPM, Maximum Torque 480 in-lb
