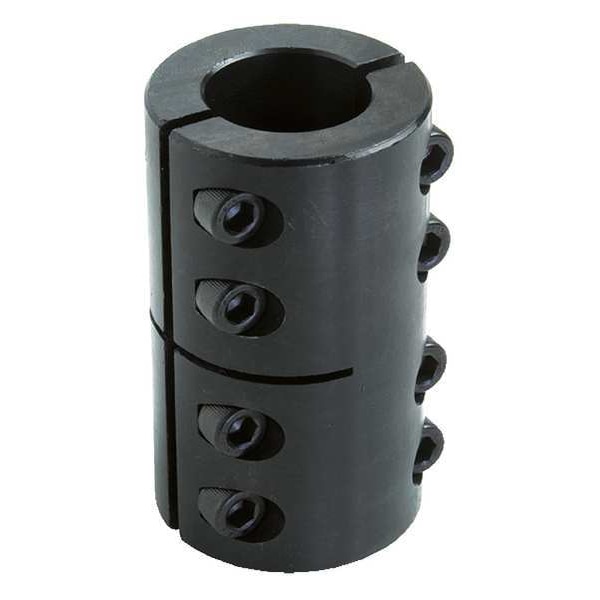

Dayton Coupling, Rigid Steel 3ZN47 - main

Coupling, Rigid Steel

  • Mfr # 3ZN47

  • Zoro # G3275754

product price: $43.79
/ea

Key Features

Shaft Locking Type - Couplings
2 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
Outside Dia.
1 5/8 in
Finish
black oxide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3ZN47
Zoro #
G3275754
UPC #
190735297094
Country of Origin
China

Dimensions

Bore Dia.
7/8 in
Outside Dia.
1 5/8 in
Overall Length
2 1/4 in
Screw Size (In.)
1/4-28 x 5/8
Screw Size
1/4"-28
Coupling Outside Diameter
1 5/8 in
Bore Diameter 1
7/8 in
Clearance Diameter
1.42 in
Different Bore Sizes
No
Bore Diameter 2
7/8 in
Screw Thread Size
1/4"-28

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
2 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
With Keyway / Without Keyway
Without Keyway
Finish
black oxide
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Machined From
Bar Stock
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Max. Torque (In.-Lbs.)
2280
Design
Eight Vibration Resistant Socket Capscrews, Can be Installed without Disassembling any Machinery or Components
Provides
Extra Holding Power for Higher Load Applications without Marring Shafts
Max. Torque
2,280 in-lb
Type
Two Piece Clamp Type, Without Keyway
Material
Steel
Zero Backlash
Yes
Maximum Speed
4,000 RPM
Coupling Construction
Two-Piece
Bore Type
Round
Coupling Material Finish
Black Oxide
Maximum Torque
2,280 in-lb
Coupling Material
Carbon Steel
Shaft Locking Type
Clamp On

Description

Rigid Shaft Coupling, Bore Diameter 1 7/8 in, Bore Diameter 2 7/8 in, Bore Type Round, Clearance Diameter 1.42 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 5/8 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter Not Applicable, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter Not Applicable, Maximum Speed 4,000 RPM, Maximum Torque 2,280 in-lb
