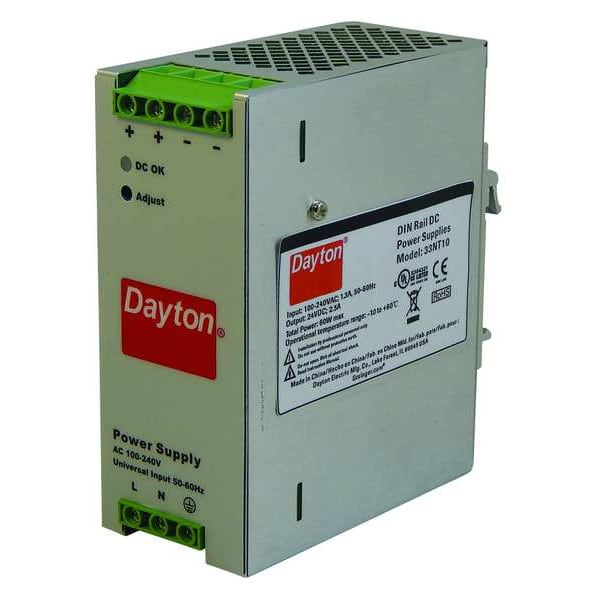

Dayton DC Power Supply, 90/264V AC, 24V DC, 60 W, 2.5 A, DIN Rail 33NT10 - main

DC Power Supply, 90/264V AC, 24V DC, 60 W, 2.5 A, DIN Rail

  • Mfr # 33NT10

  • Zoro # G2098778

product price: $187.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
90/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33NT10
Zoro #
G2098778
UPC #
190735261286
Country of Origin
China

Dimensions

Overall Height
1.97 in
Overall Width
4.88 in
Overall Depth
4.13 in
Height
4.88 in
Depth
4.13 in
Width
1.97 in

Details

Item
DC Power Supply
Input Voltage
90/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Power Supply Style
Switching
Output Noise
Less Than or Equal to 1%
Power Rating
60W
IP Rating
IP20
Hz
47 to 63 Hz
Case Material
Metal Case
Peak Amps
3
Standards
cULus Listed
Operating Temp. Range
-10 to 70°C
Phase - Electrical
Single
Output Amps
2.5A
Hold Up Time
Greater Than 20 msec
Style
Switching
Status Indicator
Green DC OK Signal
Output Voltage
24V DC
Features
Adjustable Output Voltage Compensates for Voltage Drop, Capable of Parallel Connection to Provide Redundancy for Critical Load Applications, Full Enclosed Touch-Safe Enclosure and Terminals, High Peak Power Eliminates the Need to Oversize Your Power Supply, Narrow Width Conserves Valuable Space On the DIN Rail, Universal Input Without Voltage Gaps for Full Product Application Versatility
Current - Peak
3 A
Input Frequency - Nominal
50/60 Hz
Manufacturer Warranty
1 yr
Operating Temperature - Minimum
14 Degrees F
Operating Temperature - Maximum
158 Degrees F
Special Features
Adjustable Output Voltage, Parallel Capability, Finger Safe
NEMA Enclosure Rating
1

Description

DC Power Supply, Input Voltage 90 to 264V AC, Output Voltage 24V DC, Power Rating 60W, Output Amps 2.5, Mounting DIN Rail, Switching, Case Material Metal Case, Height 4.88 in, Width 1.97 in, Depth 4.13 in, Series Not Applicable, Hz 47 to 63 Hz, Phase - Electrical Single, Peak Amps 3, IP Rating IP20, Output Noise Less Than or Equal to 1 Percent, Hold Up Time Greater Than 20 msec, Status Indicator Green DC OK Signal, NEMA Rating 1
