Dayton

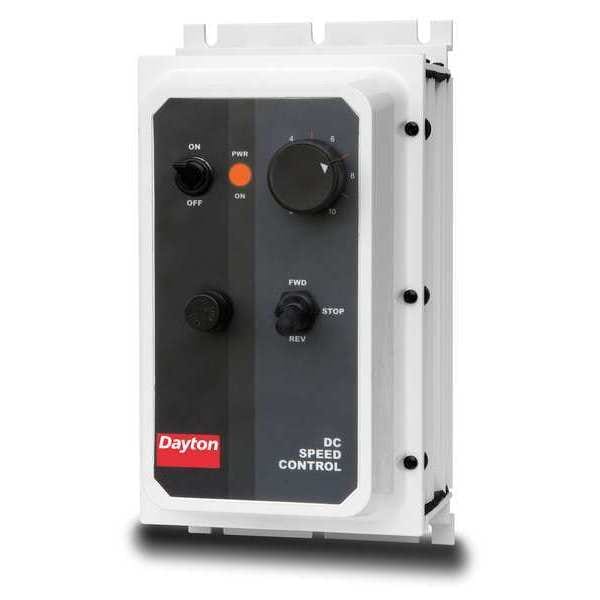

DC Speed Control, 90/180VDC, NEMA 4/12
- Zoro #: G1735291
- Mfr #: 1F794
Tap to zoom
Hover or click to zoom
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $802.51
Dayton #1F794 Specifications
- Zoro #: G1735291
- Mfr #: 1F794
- Item: DC Speed Control
- Enclosure: NEMA 4/12
- Max. Amps: 10 A
- Voltage Output: 0 to 90/180V DC
- Speed Range: 50:1
- Rotation: Reversible
- External Switches: FWD/STOP/REV, ON/OFF
- AC Input Voltage: 120/240V AC
- DC Speed Control: SCR
- Accepts Tach Feedback: Yes
- Mount Type: Wall
- Operating Temp.: -10 Degrees to 45 Degrees C
- Speed Regulation: +/-1% of Motor Base Speed
- Dynamic Braking: Yes
- Width: 5 in
- Shunt Wound Volts: 100/200V DC
- Includes: Run/Stop Switch, Built-in Transient and Surge Suppression
- Linear Acceleration: Fixed 1 to 3 sec
- For Use With: For Packaging Equipment, Pumps, Fans, Blowers, Conveyors and Other Constant or Diminishing Torque
- HP @ Lower Volts: 1/8 to 1
- Standards: cULus Listed
- HP @ Higher Volts: 1/4 to 2
- Linear Deceleration: Fixed 0.5 sec
- IR Compensation: Adjustable
- Height: 9.5 in
- Depth: 5.5 in
- Current/Torque Limit: Adjustable
- Power On Light: Yes
- Maximum Current: 10 A
- Minimum Linear Acceleration: 1 sec
- Maximum Linear Acceleration: 3 sec
- Operating Temperature: -10 Degrees to 45 Degrees C
- Higher Voltage Motor Output Power: 180 V DC
- Series: Series 125
- NEMA Rating: NEMA 4
- Overall Width: 5 in
- Enclosure Rating: NEMA 4X
- Enclosure Type: Enclosed
- Shunt Wound Voltage: 100/200V DC
- Lower Voltage Motor Output Power: 90 V DC
- Overall Depth: 5.5 in
- Maximum Linear Deceleration: 0.5 sec
- Overall Height: 9.5 in
- Country of Origin (subject to change): United States
Description
DC Speed Control, Enclosure NEMA 4/12, Max. Amps 10 A, Voltage Output 0 to 90/180V DC, Speed Range 50:1, Rotation Reversable, External Switches ON/OFF, FWD/STOP/REV, AC Input Voltage 120/240V AC, DC Speed Control SCR, HP @ Lower Volts 1/8 to 1, HP @ Higher Volts 1/4 to 2, Linear Acceleration Fixed 1 to 3 sec, Linear Deceleration Fixed 0.5 sec, Current/Torque Limit Adjustable, Speed Regulation +/-1 Percent of Motor Base Speed, Shunt Wound Volts 100/200V DC, Accepts Tach Feedback Yes
