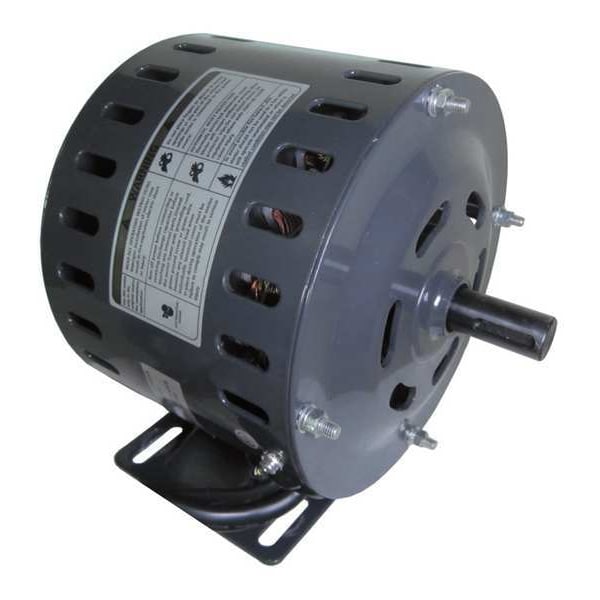

Dayton Definite Purpose HVAC Motor, 1 hp VE1YNW7MG - main

Definite Purpose HVAC Motor, 1 hp

  • Mfr # VE1YNW7MG

  • Zoro # G8678257

product price:  $258.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
1YNW7A
Fits Brand
Dayton
For Use With
Grainger Item Number: 1YNW7A; Mfr. Model Number: 1YNW7A
Voltage
120V AC
Max. Amps
7.9 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VE1YNW7MG
Zoro #
G8678257
UPC #
190735186978
Country of Origin
China

Dimensions

Body Diameter
170 mm
Length Less Shaft
5 1/2 in
Bolt Circle Diameter
157 mm
Frame Size
Non-Standard
Shaft Length
175 mm
Shaft Diameter
17 mm

Details

For Use With Mfr. Model Number
1YNW7A
Fits Brand
Dayton
Item
Motor,1 HP,1100/800 RPM,900W,Single Phase,60Hz
For Use With
Grainger Item Number: 1YNW7A; Mfr. Model Number: 1YNW7A
Voltage
120V AC
Max. Amps
7.9 A
Full Load Amps
7.9 A
Phase
Single
HP
1 hp
Drive Type
Direct Drive
Product Type
Definite Purpose HVAC Motor
Usable @ 200V
Not Usable at 200V
Frequency
60 Hz
Mounting Position
Horizontal
Compatible Brand
Dayton
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Capacitor Required
Capacitor Included
Usable @ 208V
Not Usable at 208V
Motor Design
Permanent Split Capacitor
Duty
Continuous
Compatible Manufacturer Part Number
1YNW7A
Insulation Class
B
Manufacturers Warranty
1 yr
Conduit Box Location
Exterior
Full Load Current @ 60 Hz
7.9 A
Bearing Type
Ball
Efficiency Rating
Standard Efficiency (IE1)

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 480 RPM, Voltage 120V AC, Full Load Amps 7.9 A, Non-Standard Frame, OEM Replacement Brand Dayton, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
