Shop DAYTON

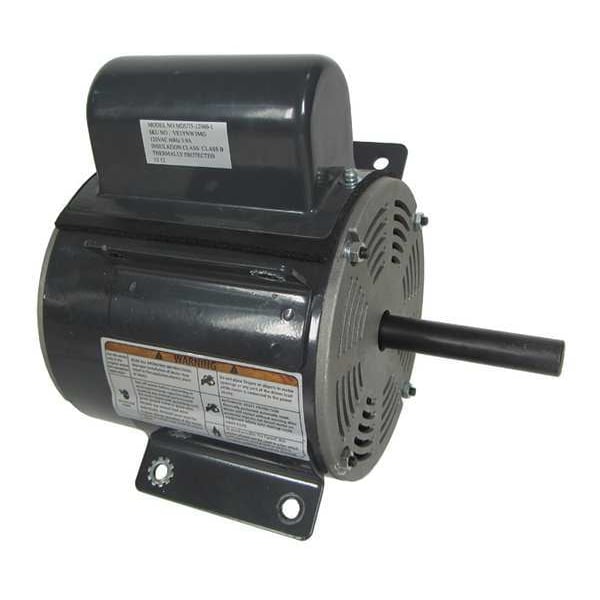

Definite Purpose HVAC Motor, 1/2 hp

  • Mfr # VE1YNW5MG

  • Zoro # G7884082

product price:  $265.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
1YNW5A
Fits Brand
Dayton
For Use With
Grainger Item Number: 1YNW5A; Mfr. Model Number: 1YNW5A
Efficiency Rating
Standard Efficiency (IE1)
Body Diameter
164 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VE1YNW5MG
Zoro #
G7884082
UPC #
190735186855
Country of Origin
China

Dimensions

Body Diameter
164 mm
Bolt Circle Diameter
151 1/2 mm
Shaft Length
175 mm
Length Less Shaft
6 9/16 in
Frame Size
Non-Standard
Shaft Diameter
15 7/8 mm

Details

For Use With Mfr. Model Number
1YNW5A
Fits Brand
Dayton
Item
MOTOR
For Use With
Grainger Item Number: 1YNW5A; Mfr. Model Number: 1YNW5A
Efficiency Rating
Standard Efficiency (IE1)
Drive Type
Direct Drive
Usable @ 200V
Not Usable at 200V
Compatible Brand
Dayton
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Compatible Manufacturer Part Number
1YNW5A
Usable @ 208V
Not Usable at 208V
Frequency
60 Hz
Conduit Box Location
Exterior
Manufacturers Warranty
1 yr
Capacitor Required
Capacitor Included
Mounting Position
Horizontal
Phase
Single
Frame Material
Steel
Full Load Current @ 60 Hz
5.3 A
Bearing Type
Ball
Motor Design
Permanent Split Capacitor
Product Type
Definite Purpose HVAC Motor
Duty
Continuous

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 825 RPM, Voltage 120V AC, Full Load Amps 5.3 A, Non-Standard Frame, OEM Replacement Brand Dayton, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
