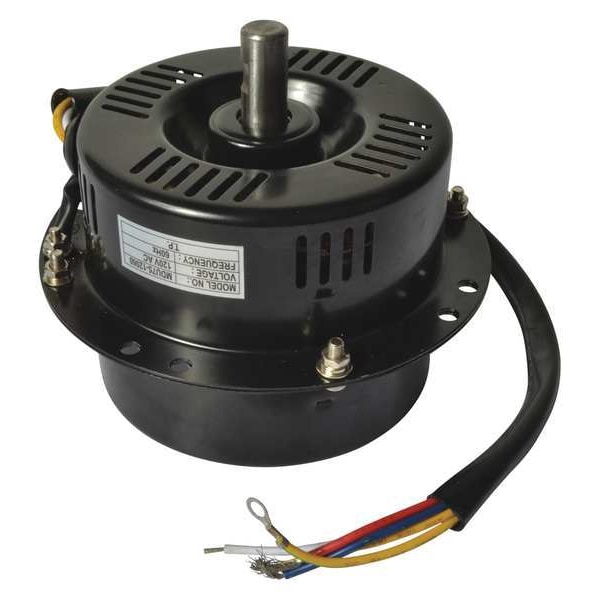

Definite Purpose HVAC Motor, 1/2 hp
- Mfr # VEMCU7512060G
- Zoro # G8338741
product price:Â
$
184.99
/ea
Free Shipping & Returns
Key Features
For Use With Mfr. Model Number
10R361
Fits Brand
Dayton
For Use With
Grainger Item Number: 10R361
Usable @ 208V
Not Usable at 208V
Bearing Type
Ball
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VEMCU7512060G
- Zoro #
- G8338741
- UPC #
- 190735210284
- Country of Origin
- China
Dimensions
- Shaft Diameter
- 15 mm
- Frame Size
- Non-Standard
- Bolt Circle Diameter
- 143 mm
- Shaft Length
- 126 mm
- Body Diameter
- 155 mm
- Length Less Shaft
- 3 15/16 in
Description
Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,050 RPM, Voltage 120V AC, Full Load Amps 2.9 A, Non-Standard Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
