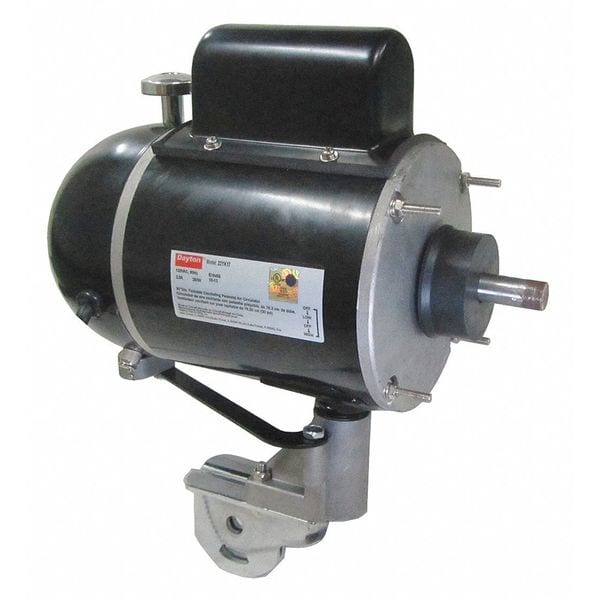

Definite Purpose HVAC Motor, 1/4 hp

  • Mfr # VE22YK17MG

  • Zoro # G8643677

product price:
$
318.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
22YK17
Fits Brand
Dayton
For Use With
Grainger Item Number: 22YK17
Length Less Shaft
10 1/16 in
Mounting Position
Horizontal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VE22YK17MG
Zoro #
G8643677
UPC #
190735130025
Country of Origin
China

Dimensions

Length Less Shaft
10 1/16 in
Bolt Circle Diameter
130 mm
Body Diameter
144 mm
Shaft Diameter
15 mm
Shaft Length
259 1/2 mm
Frame Size
Non-Standard

Details

For Use With Mfr. Model Number
22YK17
Fits Brand
Dayton
Item
MOTOR
For Use With
Grainger Item Number: 22YK17
Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Product Type
Definite Purpose HVAC Motor
Insulation Class
B
Bearing Type
Ball
Motor Design
Permanent Split Capacitor
Compatible Manufacturer Part Number
22YK17
Frequency
60 Hz
Duty
Continuous
Efficiency Rating
Standard Efficiency (IE1)
Capacitor Required
Capacitor Included
Phase
Single
Usable @ 200V
Not Usable at 200V
Drive Type
Direct Drive
Manufacturers Warranty
1 yr
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Compatible Brand
Dayton
Full Load Current @ 60 Hz
2.8 A
Conduit Box Location
Interior

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,100 RPM, Voltage 120V AC, Full Load Amps 2.8 A, Non-Standard Frame, OEM Replacement Brand Dayton, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
