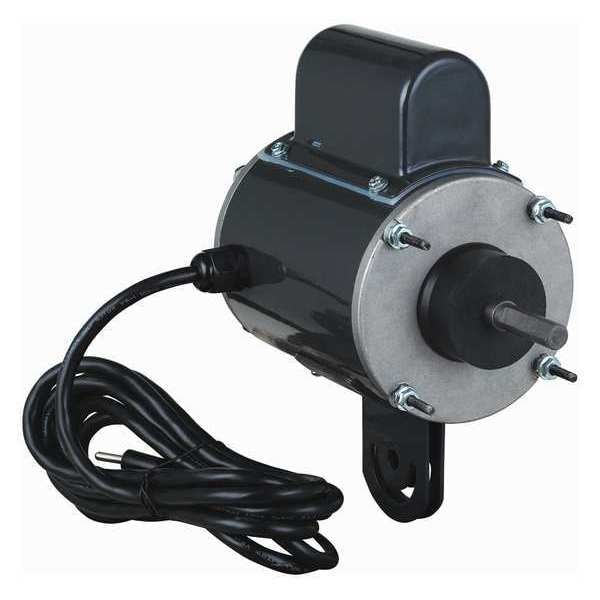

Dayton Definite Purpose HVAC Motor, 1/4 hp VEGH24MAG - main

Definite Purpose HVAC Motor, 1/4 hp

  • Mfr # VEGH24MAG

  • Zoro # G7368719

product price:  $237.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
1ZCN8
Fits Brand
Dayton
For Use With
Grainger Item Number: 1ZCN8D
Insulation Class
B
Mounting Position
Horizontal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VEGH24MAG
Zoro #
G7368719
UPC #
190735958360
Country of Origin
China

Dimensions

Bolt Circle Diameter
130 mm
Shaft Diameter
12 11/16 mm
Shaft Length
231 mm
Frame Size
48YZ
Length Less Shaft
6 3/4 in
Body Diameter
144 mm

Details

For Use With Mfr. Model Number
1ZCN8
Fits Brand
Dayton
Item
Motor
For Use With
Grainger Item Number: 1ZCN8D
Insulation Class
B
Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
Drive Type
Direct Drive
Capacitor Required
Capacitor Included
Efficiency Rating
Standard Efficiency (IE1)
Compatible Brand
Dayton
Manufacturers Warranty
1 yr
Bearing Type
Ball
Motor Design
Permanent Split Capacitor
Phase
Single
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
2.8 A
Frame Material
Steel
Product Type
Definite Purpose HVAC Motor
Conduit Box Location
Interior
Usable @ 208V
Not Usable at 208V
Duty
Continuous
Frequency
60 Hz
Compatible Manufacturer Part Number
1ZCN8

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,100 RPM, Voltage 115V AC, Full Load Amps 2.8 A, 48YZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
