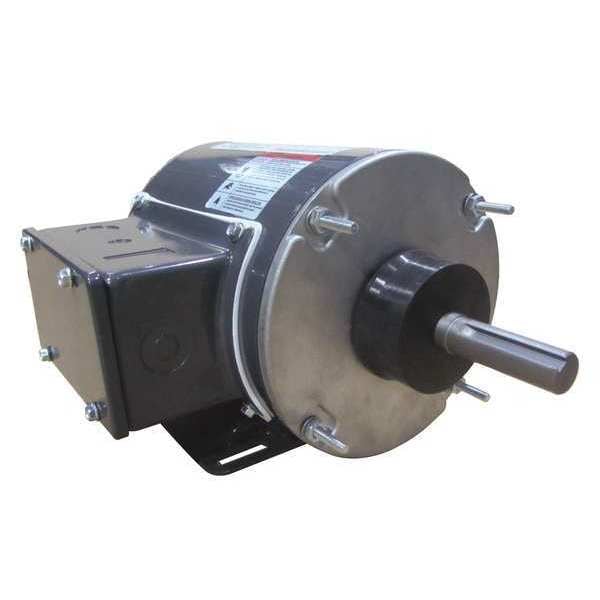

Dayton Definite Purpose HVAC Motor, 3/4 hp VED166U2919.6G - main

Definite Purpose HVAC Motor, 3/4 hp

  • Mfr # VED166U2919.6G

  • Zoro # G7114506

product price:  $415.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
10D982, 10D993, 10D994, 10E048, 10E049
Fits Brand
Dayton
For Use With
Grainger Item Number: 10E048, 10E049, 10D982, 10D993, 10D994
Bearing Type
Ball
Bolt Circle Diameter
130 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VED166U2919.6G
Zoro #
G7114506
UPC #
190735958100
Country of Origin
China

Dimensions

Bolt Circle Diameter
130 mm
Frame Size
48YZ
Shaft Length
245 mm
Shaft Diameter
15 7/8 mm
Body Diameter
144 mm
Length Less Shaft
7 in

Details

For Use With Mfr. Model Number
10D982, 10D993, 10D994, 10E048, 10E049
Fits Brand
Dayton
Item
Motor
For Use With
Grainger Item Number: 10E048, 10E049, 10D982, 10D993, 10D994
Bearing Type
Ball
Motor Design
Three-Phase
Usable @ 208V
Usable at 208V
Duty
Continuous
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Manufacturers Warranty
1 yr
Usable @ 200V
Not Usable at 200V
Compatible Brand
Dayton
Drive Type
Direct Drive
Capacitor Required
Capacitor Not Required
Full Load Current @ 60 Hz
3.6-3.8/1.9 A
Mounting Position
Horizontal
Product Type
Definite Purpose HVAC Motor
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Conduit Box Position
F2
Conduit Box Location
Exterior
Phase
Three
Compatible Manufacturer Part Number
10D982, 10D993, 10D994, 10E048, 10E049

Description

Definite Purpose HVAC Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,150 RPM, Voltage 208-230/460V AC, Full Load Amps 3.6-3.8/1.9 A, 48YZ Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
