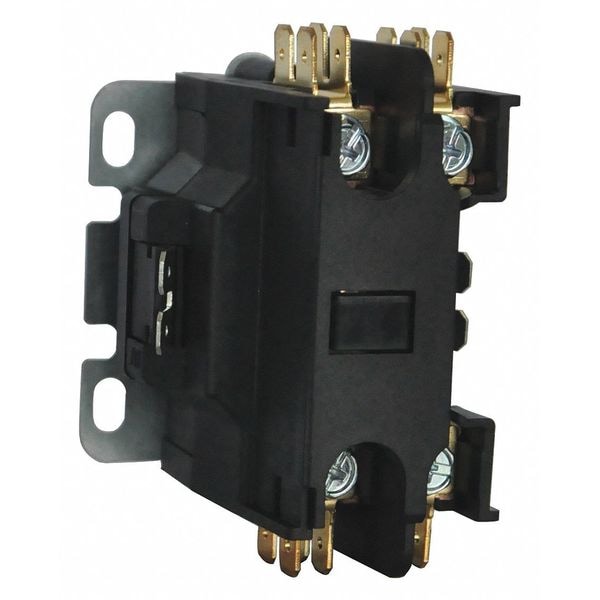

Definite Purpose Magnetic Contactor, 120V AC, 1 P, Non-Reversing, 1 Phase, Screw

The DAYTON - 6GNZ4 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The current flow direction remains constant throughout its operation.
• Coil Voltage: Rated for operation within the specified voltage range of 120V AC.
• Contact Material: Made from Silver Cadmium Oxide which enhances conductivity, durability, and resistance to corrosion.
• Electrical Operating Durability: Electrical operating durability is rated for up to 200,000 operations under standard conditions.
• Frequency: Frequency rating is specified for operation at electrical cycles per second measured at 50/60 Hz.
• Full Load Amps-Inductive & Resistive: Rated for maximum currents of up to 20 A (inductive loads) and 25 A (resistive loads).
• Horsepower @ Single Phase - Specified for control over a horsepower range from as low as 3/4 hp (@120V) up to high as 7-1/2 hp (@240V).
• Mechanical Operating Durability: Rated for performance through half a million cycles under standard conditions.
