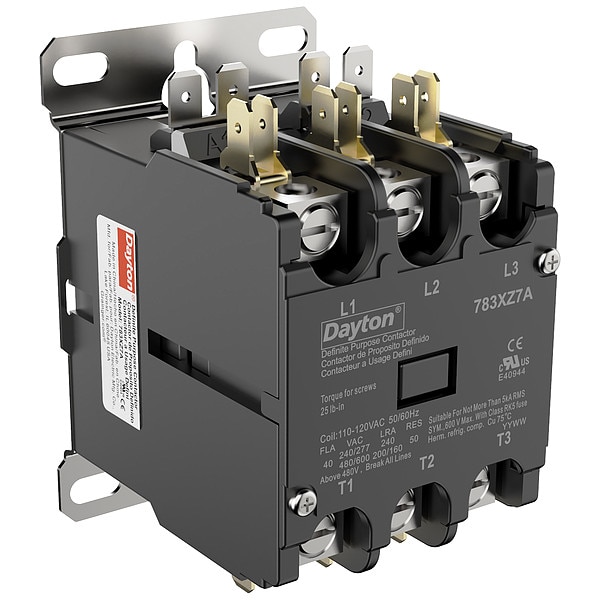

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug

The DAYTON - 783XZ7 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Auxiliary Contact Module Capacity: The contactor can control up to 2 additional secondary circuits, providing flexibility in managing multiple electrical loads or signals.
• Coil Voltage: Requires a specific voltage range of 120V AC for effective engagement or disengagement of its electrical circuit.
• Contact Material: Constructed with Silver Tin Oxide which influences conductivity, durability, and resistance to corrosion.
• Electrical Operating Durability: Rated for electrical operation up to 200,000 cycles based on standard testing procedures.
• Frequency: Designed to handle 50/60 Hz frequency impacting its compatibility with different power systems.
• Full Load Amps-Inductive & Resistive: Designed for handling specified maximum currents of inductive loads (40A) and resistive loads (50A), within the product's specifications.
• Horsepower @ Single Phase & Three Phase - Various Voltages AC: Indicates the maximum horsepower that it can control at different voltages ranging from single-phase power supply of 120 volts (3 hp) up to three-phase power supply of 600 volts (25 hp).
• Mechanical Operating Durability: Mechanically rated for operation up to 500,000 cycles based on standard testing conditions.
• Number of Normally Open Main Contacts: Contains 3 main contacts that remain open when the device is not powered, allowing professionals to control multiple circuits with varying degrees of power requirements.
• Standards: Complies with CE and cRUus standards according to manufacturer's declaration.
