Definite Purpose Magnetic Contactor, 24V AC, 3 P, Non-Reversing, 3 Phase, Box Lug

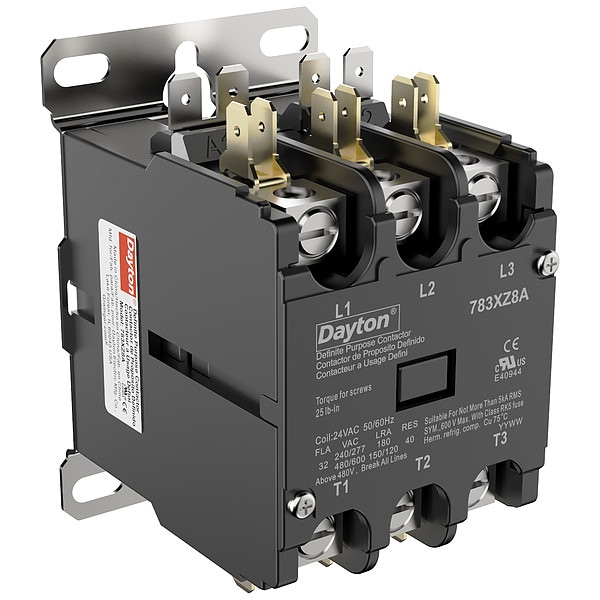

The DAYTON - 783XZ8 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Auxiliary Contact Module Capacity: The contactor has a capacity for controlling two additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
• Coil Voltage: Rated for operation within a coil voltage range of 24V AC, suitable for controlling power flow in industrial and commercial applications.
• Contact Material: Made from Silver Cadmium Oxide which influences conductivity, durability, and resistance to corrosion.
• Electrical Operating Durability: Has been tested for electrical operation up to 200000 cycles under standard conditions. Actual lifespan may vary based on usage conditions.
• Frequency: Specified for handling electrical cycles per second measured at 50/60 Hz, which may affect its compatibility with different power systems.
• Full Load Amps-Inductive & Resistive: Tested to manage maximum current continuously when controlling both inductive (32 A) and resistive (40 A) loads within specified ranges. Overheating or damage can occur if used outside these parameters
• Horsepower @ Three Phase - Various Voltages : Horsepower capacity varies depending on voltage levels; rated for control of up to 10 hp at three-phase power supply of both 480 volts and 575 volts respectively. Performance may vary based on actual operating conditions."
