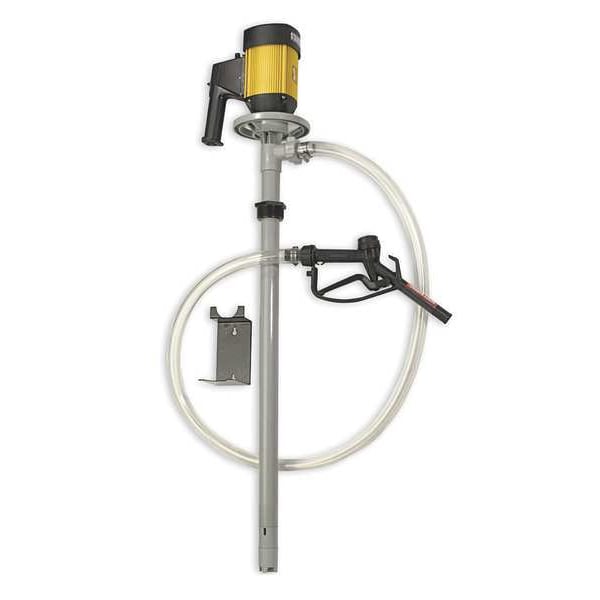

Dayton Drum Pump, 110VAC, 1 HP, 60 Hz 1DLP8 - main

Drum Pump, 110VAC, 1 HP, 60 Hz

  • Mfr # 1DLP8

  • Zoro # G1534163

product price: $1,440.99
/ea
Free Shipping & Returns

Key Features

For Use With
9400
Max. Viscosity
1,500 cps
Motor Type
Electric AC Brush
Power Source
Electric
Outlet Size
1" barb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DLP8
Zoro #
G1534163
UPC #
190735135341
Country of Origin
United States

Dimensions

Outlet Size
1" barb
Suction Tube Length
39 in
Discharge Tube Length
6 ft.
Overall Length
51 in
Adapter Dia.
2"
Inlet Size
1.6"
Height
39"
Bung Connection Dia.
2 in
For Container Size
55 gal
Cord Length
16 ft
Hose Outside Dia.
1 1/4 in
Hose Inside Dia.
1 in
Hose Length
72 in

Details

For Use With
9400
Item
Electric Operated Drum Pump
Max. Viscosity
1,500 cps
Motor Type
Electric AC Brush
Power Source
Electric
Wetted Materials
Carbon Graphite, Hastelloy C-276, Polypropylene, PVC, Viton
Voltage
110vac
Motor Enclosure
ODP
Metered
No
Max. Flow GPM
32 gpm
Motor RPM
0-10,000
Adapter Type
Bung
Housing Material
Polypropylene
Type
Motor and Tube
DEF Compatible
No
Max. Pressure
16 psi
Adapter Material
Polypropylene
RPM
10,000
Pump Body Material
Polypropylene
Max. Liquid Temp.
130 Degrees F
Phase
1
Max. GPM for Water
15
Self-Priming
Yes
Action Type
Centrifugal
Suction Tube Type
Centrifugal
Max. Head
36 ft.
Hz
60
Max. Temp.
130 Degrees F
Discharge Tubing Material
PVC
Agency Compliance
ETL Recognized Component(Motor Only)
Standards
UL Recognized Component (Motor Only)
HP
1
Max. GPM for Oil
7
GPM
32
Application
For Transferring a Variety of Corrosive Liquids
Frequency (Hz)
50/60 Hz
Max. Fluid Temp.
130 Degrees F
Suction Tube OD
1 5/8 in
Includes Bung Adapter
Yes
Suction Tube Material
Polypropylene
Includes Discharge Hose
Yes
Noise Level
84 db
Max. Flow Rate
15 gpm
For Media Type
Acetic Acid, Ammonia, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Glycerin, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water
Discharge Connection Type
Hose Barb
Seal Material
Sealless
Variable Speed
Yes
Housing Material - Pumps
Polypropylene
Discharge Tube Outlet ID
1 in
Max. Head Pressure
16 psi
Compatible Chemicals
Acetic Acid 20%, Acetic Acid 80%, Ammonia (Liquids), Calcium Chloride, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sulfuric Acid (10% - 75%)
Nozzle Material
Polypropylene
Number of Phases
1
Diesel Exhaust Fluid Compatible
No
Food Grade
No
Max. Oil Flow
7 gpm
Spout Connection Type
Hose Barb
Duty Cycle
Intermittent
Hose Tube Material
PVC
Discharge Tube Outlet OD
1 1/2 in
Includes Suction Tube
Yes
Full Load Amps
8.5 A
Includes Nozzle
Yes
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Ammonium Hydroxide, Chromic Acid 30%, Cyclohexane, DEF, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Gasoline, Heptane, Hexane, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Xylene
Suction Tube ID
1 3/8 in
Plug Type
NEMA 5-15-P
Thermal Protection
Yes
For Container Type
Drum
Max. Head - Pumps
36 ft
Motor HP
1 1/10 hp
Includes Spout
No
Nozzle Operation
Manual
Runs Dry
Yes
Hose Cover Material
PVC
Rated Voltage
110V AC
Max. Outlet Pressure
16 psi
Grease
NT
Gear Lube
NT
Adapter Connection Type
MNPT

Description

Electric Drum Pump, Hose Inside Dia. 1 in, Max. Head Pressure 16 psi, Max. Oil Flow 7 gpm, Max. Outlet Pressure 16 psi, For Use With 9400, Rated Voltage 110 V AC, Plug Type NEMA 5-15P, Suction Tube OD 1 5/8 in, Hose Length 6 ft, Suction Tube Length 39 in, Cord Length 16 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 50/60 Hz, Power Source Corded Electric, Variable Speed Yes, Includes Discharge Hose Yes, Self-Priming Yes
