Shop DAYTON

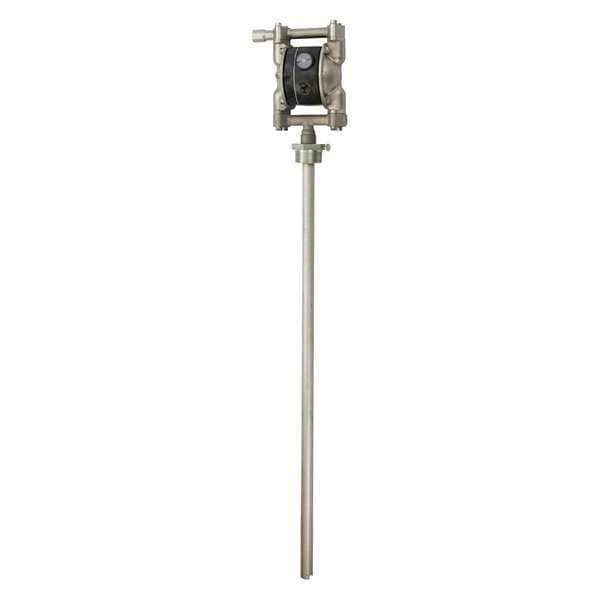

Drum Pump, Inlet 1/2", Max. Flow 12.5 gpm

  • Mfr # 53JU97

  • Zoro # G8096000

product price:  $1,684.99
/ea
Free Shipping & Returns

Key Features

For Media Type
For Container Size
55 gal
Max. Flow Rate
12.5 gpm
Max. Viscosity
15,000 cps
Diesel Exhaust Fluid Compatible
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
53JU97
Zoro #
G8096000
UPC #
00194484302931
Country of Origin
United States

Dimensions

For Container Size
55 gal
Adapter Dia.
2"
Inlet Size
1/2"
Suction Tube Length
39 3/16 in
Discharge Tube Length
10 ft.
Discharge Size FPT (In.)
1/2
Manufacturers Warranty Length
1 yr.
Hose Length
120 in
Air Inlet Size
1/4 in FNPT
Height Above Container
8 in
Overall Length
56 9/16 in
Hose Outside Dia.
3/4 in
Air Outlet Size
3/8 in
Bung Connection Dia.
2 in
Overall Width
8-7/64 in
Overall Height
49-7/16 in
Air Inlet Connection Size
1/4 in
Adapter Connection Diameter
2 in
Hose Outside Diameter
3/4 in
Hose Inside Diameter
1/2 in
Wire Rope Length
56 9/16 in

Details

Item
Air Drum Pump
For Media Type
Max. Flow Rate
12.5 gpm
Max. Viscosity
15,000 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
PTFE
Includes Suction Tube
Yes
For Use With
Coatings, Hydrocarbons, Paints, Solvents
Hose Tube Material
PVC
Discharge Tube Outlet ID
1/2 in
Discharge Tube Outlet OD
3/4 in
Seal Material
PTFE
Max. Flow GPM
12.5 gpm
Self-Priming
Yes
Max. Air Inlet (PSI)
100
Discharge Tubing Material
PVC
Adapter Type
Bung
Adapter Material
316 Stainless Steel
Includes
Ball Valve, Dip Tube, Grounding Strap, Hose
Delivers
3000 CPS
Suction Tube Material
Stainless Steel
Metered
No
Power Source
Air
Includes Spout
No
Not Recommended Chemicals
Bleach, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Hydrochloric Acid 20%, Hydrochloric Acid 37%, Hydrofluoric Acid 20%, Sodium Hydroxide 80%, Sulfuric Acid 10% to 75%
For Container Type
Drum
Suction Tube ID
1/2 in
Runs Dry
Yes
Includes Nozzle
No
Pump Connection Type
FNPT
Includes Discharge Hose
Yes
Max. Fluid Temp.
212 Degrees F
Housing Material - Pumps
Stainless Steel
Compatible Chemicals
Max. Head Pressure
100 psi
Duty Cycle
Continuous
Min. Air Pressure
20 psi
Suction Tube OD
3/4 in
Max. Oil Flow
12 gpm
Discharge Connection Type
FNPT
Includes Bung Adapter
Yes
Pump Connection OD
3/4 in
Max. Air Pressure
100 psi
Food Grade
No
Pump Connection ID
1/2 in
Noise Level
77.5 dB
Variable Speed
Yes
Explosion Proof
No
Gear Lube
NT
Max. Head - Pumps
231 ft
Adapter Connection Type
FNPT
Pump Ratio
1:1
Maximum Head Pressure
100 psi
Hose Cover Material
PVC
Chemical Compatibility
Minimum Air Pressure
20 psi
Housing Material
Stainless Steel
Pump Technology
Diaphragm
Maximum Viscosity
15,000 cps
Static Protection
Grounding Line Included
Thermal Protection
No
Container Cover Type Included
No Cover Included
Maximum Air Pressure
100 psi
Includes Follower Plate
No Follower Plate Included
Maximum Fluid Temperature
212 Degrees F
Maximum Head
231 ft
Minimum Fluid Temperature
32 Degrees F
Mounting Bracket Included
Drum Mounting Bracket
Nozzle Material
316 Stainless Steel
Air Inlet Connection Type
FNPT
Features
Intrinsically Safe
Maximum Flow Rate
12.5 gpm
Air Consumption
15 cfm
Hazardous Location Class
Not Rated
Wetted Material
PTFE
Maximum Outlet Pressure
100 psi
Pressure Ratio
1:1
Meter Type Included
No Meter Included
Maximum Oil Flow
12 gpm
Adapter Connection Standard
FNPT
Power Source - TS Only
Air

Description

Air Drum Pump, Max. Air Pressure 100 psi, Spout Connection Size Not Applicable, Suction Tube Material Stainless Steel, Self-Priming Yes, Overall Length 56 9/16 in, Explosion Proof No, Discharge Connection Type FNPT, Features Intrinsically Safe, Spout Length Not Applicable, Food Grade No, Thermal Protection No, Air Outlet Size 3/8 in, Bung Connection Dia. 2 in, Air Consumption 15 cfm, Hose Length 120 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 77.5 dB
