  9. Effluent Pump, Submersible, 1/2 HP

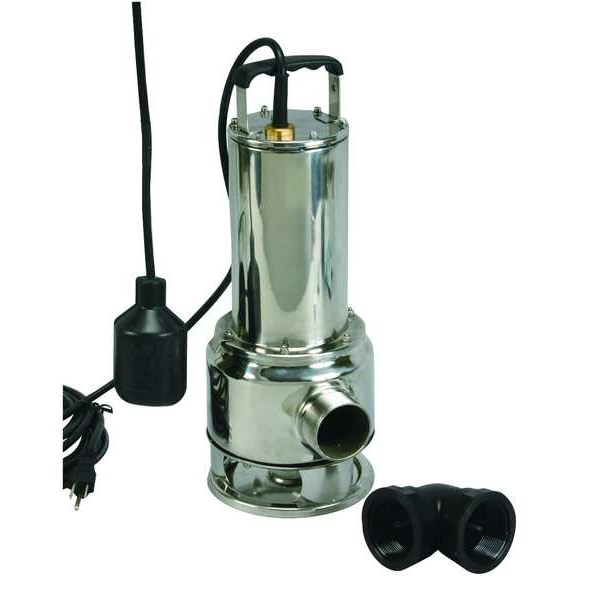

Dayton Effluent Pump, Submersible, 1/2 HP 2JGA3 - main

Effluent Pump, Submersible, 1/2 HP

  • Mfr # 2JGA3

  • Zoro # G0466645

product price: $601.99
/ea
Free Shipping & Returns

Key Features

Phase - Pumps
1
Cord Length
20 ft
HP
1/2
Impeller Material
Stainless Steel
Amps
11.7 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2JGA3
Zoro #
G0466645
UPC #
190735220818
Country of Origin
China

Dimensions

Cord Length
20 ft
Width
11-1/32"
Diameter
6-1/2"
Max. Dia. Solids
1-1/2"
Length
16-15/16"
Min. Sump Pit Dia.
18 in
Cord Length - Pumps
20 ft.
Height
16-3/4"
Max. Diameter Solids
1 1/2 in
Body Dia.
6 1/2 in
Minimum Water Depth
18 in
Discharge Dia.
2 in
Overall Height
16 3/4 in
Width at Widest Point
11 in
Solids Diameter - Maximum
1 1/2 in
Discharge Diameter
2 in
Body Diameter
6 1/2 in
Sump Pit Diameter - Minimum
18 in
Water Depth - Minimum
18 in

Details

Item
Effluent Pump
Phase - Pumps
1
HP
1/2
Impeller Material
Stainless Steel
Amps
11.7 A
Body Material
Stainless Steel
Max. Head
36 ft
Switch Actuation
Tether Float
Motor Type
Oil Filled
Bearing Type
Ball
Voltage - Pumps
120VAC
Handle
yes
Max. Liquid Temp.
130 Degrees F
Pump RPM
3450
GPM of Water @ 10 Ft. of Head
85
GPM of Water @ 40 Ft. of Head
12
GPM of Water @ 25 Ft. of Head
50
Pump Body Material
Stainless Steel
Input Phase AC
1
Includes
2" 90 Deg Elbow
Switch Type
Tether
Amps - Pumps
11.70
Top Material
Stainless Steel
Thermal Protection
Thermal Protection
Shaft Seal
CRB/CMC/Buna N/SS
Switch Type - Pumps
Tether
Voltage
115V
GPM of Water @ 35 Ft. of Head
5
GPM of Water @ 20 Ft. of Head
64
GPM of Water @ 30 Ft. of Head
25
GPM of Water @ 5 Ft. of Head
95
Base Material
Stainless Steel
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile Rubber, Stainless Steel
Impeller Material - Pumps
Stainless Steel
Off Point
4 1/4 in
On Point
11 1/2 in
Housing Material
Stainless Steel
Hz
60 Hz
Motor RPM
3450
Agency Compliance
CSA, UL
GPM of Water @ 15 Ft. of Head
77
Pump HP
1/2
Item - Effluent Pumps
Submersible Effluent Pump
Phase
Single
Discharge NPT
2"
Duty
Intermittent
Max. Head - Pumps
36 ft.
Flow Rate @ 15 Ft. of Head
77 gpm
Flow Rate @ 20 Ft. of Head
64 gpm
RPM
3,450 RPM
Discharge Gender
Male
Duty Cycle
Intermittent
Switch Electrical Connection
Piggyback
Alarm Included
No
Discharge Standard
NPT
Flow Rate @ 10 Ft. of Head
85 gpm
Rated Voltage
120V AC
Discharge
2 in MNPT
Standards
CSA Certified, UL Listed
Horsepower
1/2 hp
Feet of Head - Maximum
36 ft
Current
11.7 A
Includes Alarm
No Alarm Included
Flow Rate @ 20 ft of Head
64 gpm
Rotation Speed - Maximum
3,450 RPM
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber/Stainless Steel
Frequency
60 Hz
Flow Rate @ 10 ft of Head
85 gpm
Liquid Temperature - Maximum
130 Degrees F

Description

Effluent Pump, HP 1/2, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Amps 11.7 A, Body Material Stainless Steel, Impeller Material Stainless Steel, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile Rubber, Stainless Steel, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 4 1/4 in, On Point 11 1/2 in, Flow Rate @ 10 Ft. of Head 85 gpm, Flow Rate @ 15 Ft. of Head 77 gpm, Flow Rate @ 20 Ft. of Head 64 gpm, Max. Head 36 ft, Min. Sump Pit Dia. 18 in
