  11. Electric Vibrator, 0.70/0.35 A, 230/460VAC, 3 Phase

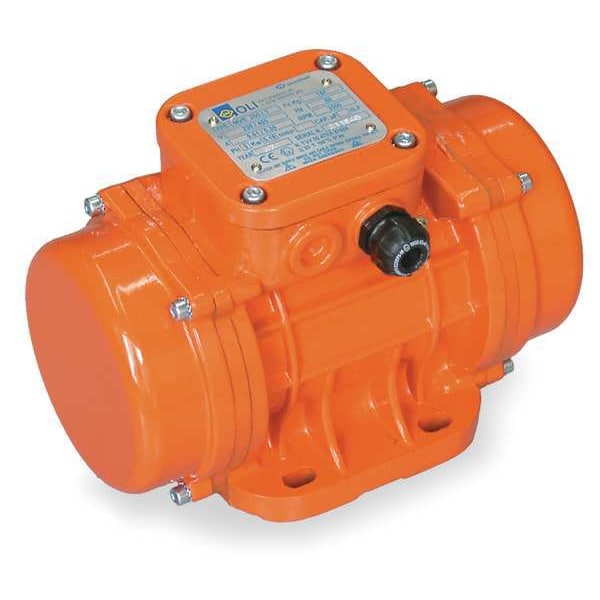

Dayton Electric Vibrator, 0.70/0.35 A, 230/460VAC, 3 Phase 1DYL5 - main

Electric Vibrator, 0.70/0.35 A, 230/460VAC, 3 Phase

  • Mfr # 1DYL5

  • Zoro # G3340662

product price: $303.99
/ea
Free Shipping & Returns

Key Features

Force Rating
417 lb
Power Source
Electric
Voltage
230/460VAC
Phase
3
Overall Length
8-1/2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYL5
Zoro #
G3340662
UPC #
190735137055
Country of Origin
Malta

Dimensions

Overall Length
8-1/2"
Overall Width
5-1/8"
Overall Height
6-1/4"

Details

Item
Electric Vibrator
Force Rating
417 lb
Power Source
Electric
Voltage
230/460VAC
Phase
3
Speed
3600 vpm
Bin Weight Capacity
4170 lb
Mounting Plate
No
Standards
CE
dBA
76
Max. Temp.
104 Degrees F
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and for Casting Concrete For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes
HP
0.24
End Bell Material
Aluminum
Duty
Continuous
Amps
0.70/0.35
Force
Mechanically Adjustable
Housing Material
Aluminum
Enclosure
Totally Enclosed Non-Ventilated
Bearing Type
Prelubricated
Maximum Operating Temperature
104 Degrees F
Operating Voltage
230/460V AC
Maximum Force
417 lbf
Maximum Bin Weight Capacity
4,170 lb
Mount Plate Required
No
Maximum Vibration Speed
3,600 vpm
Mount Plate Included
No
Adjustable Force
Yes
Full Load Current
0.35 A, 0.70 A
Voltage Type
AC
Duty Cycle
Continuous
Sound Level
76 dBA
Weight
15.43 lb
Horsepower Rating
0.24 hp
Motor Enclosure
Totally Enclosed Nonventilated

Description

Electric Vibrator, Duty Cycle Continuous, Maximum Force 417 lbf, Voltage Type AC, Phase Three, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 76 dBA, Power Source Electric Motor, Operating Voltage 230/460V AC, Maximum Bin Weight Capacity 4,170 lb, Full Load Current 0.35 A, 0.70 A, Overall Length 8.5 in, Overall Width 5.13 in, Overall Height 6.25 in, Standards CE Certified, Weight 15.43 lb, Horsepower Rating 0.24 hp, Adjustable Force Yes
