  11. Electric Vibrator, 0.90/0.45 A, 230/460VAC, 3 Phase

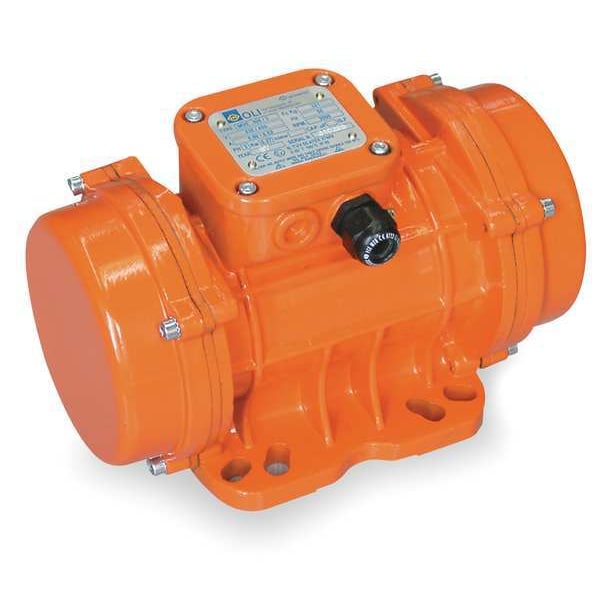

Dayton Electric Vibrator, 0.90/0.45 A, 230/460VAC, 3 Phase 1DYL6 - main

Electric Vibrator, 0.90/0.45 A, 230/460VAC, 3 Phase

  • Mfr # 1DYL6

  • Zoro # G0913507

product price: $388.99
/ea
Free Shipping & Returns

Key Features

Force Rating
712 lb
Power Source
Electric
Voltage
230/460VAC
Phase
3
Overall Length
10"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYL6
Zoro #
G0913507
UPC #
190735137062
Country of Origin
Malta

Dimensions

Overall Length
10"
Overall Width
6-1/8"
Overall Height
7"

Details

Item
Electric Vibrator
Force Rating
712 lb
Power Source
Electric
Voltage
230/460VAC
Phase
3
Speed
3600 vpm
Bin Weight Capacity
7120 lb
Duty
Continuous
Standards
CE
Housing Material
Aluminum
End Bell Material
Aluminum
Amps
0.90/0.45
Mounting Plate
No
Max. Temp.
104 Degrees F
Force
Mechanically Adjustable
Enclosure
Totally Enclosed Non-Ventilated
HP
0.36
dBA
76
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and for Casting Concrete For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Bearing Type
Prelubricated
Includes
Oversized Vacuum-Impregnated Windings that Withstand Vibration and High Centrifugal force, Steel End Caps
Motor Enclosure
Totally Enclosed Nonventilated
Adjustable Force
Yes
Weight
21.61 lb
Operating Voltage
230/460V AC
Maximum Force
712 lbf
Sound Level
76 dBA
Maximum Vibration Speed
3,600 vpm
Full Load Current
0.45 A, 0.90 A
Maximum Bin Weight Capacity
7,120 lb
Horsepower Rating
0.36 hp
Voltage Type
AC
Duty Cycle
Continuous
Mount Plate Required
No
Maximum Operating Temperature
104 Degrees F
Mount Plate Included
No

Description

Electric Vibrator, Duty Cycle Continuous, Maximum Force 712 lbf, Voltage Type AC, Phase Three, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 76 dBA, Power Source Electric Motor, Operating Voltage 230/460V AC, Maximum Bin Weight Capacity 7,120 lb, Full Load Current 0.45 A, 0.90 A, Overall Length 10 in, Overall Width 6.13 in, Overall Height 7 in, Standards CE Certified, Weight 21.61 lb, Horsepower Rating 0.36 hp, Adjustable Force Yes
