  11. Electric Vibrator, 3.00/1.50 A, 230/460VAC, 3 Phase

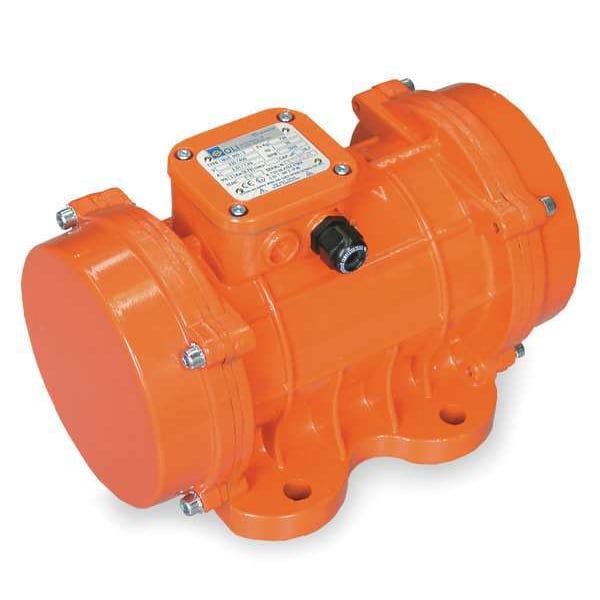

Dayton Electric Vibrator, 3.00/1.50 A, 230/460VAC, 3 Phase 1DYL8 - main

Electric Vibrator, 3.00/1.50 A, 230/460VAC, 3 Phase

  • Mfr # 1DYL8

  • Zoro # G2501922

product price: $717.99
/ea
Free Shipping & Returns

Key Features

Power Source
Electric
Force Rating
1766 lb.
Voltage
230/460VAC
Phase
3
Overall Length
12-5/8"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYL8
Zoro #
G2501922
UPC #
190735137086
Country of Origin
Malta

Dimensions

Overall Length
12-5/8"
Overall Width
9-1/4"
Overall Height
8-1/4"

Details

Item
Electric Vibrator
Power Source
Electric
Force Rating
1766 lb.
Voltage
230/460VAC
Phase
3
Speed
3600 vpm
Bin Weight Capacity
17,640 lb.
Amps
3.00/1.50
Force
Mechanically Adjustable
Max. Temp.
104 Degrees F
Housing Material
Aluminum
Enclosure
Totally Enclosed Non-Ventilated
Duty
Continuous
HP
1.01
dBA
76
Mounting Plate
No
Standards
CE
End Bell Material
Aluminum
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and for Casting Concrete For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Bearing Type
Prelubricated
Includes
Oversized Vacuum-Impregnated Windings that Withstand Vibration and High Centrifugal force, Steel End Caps
Maximum Force
1,766 lbf
Weight
45.42 lb
Mount Plate Required
No
Maximum Bin Weight Capacity
17,640 lb
Sound Level
76 dBA
Mount Plate Included
No
Full Load Current
1.50 A, 3.00 A
Maximum Vibration Speed
3,600 vpm
Maximum Operating Temperature
104 Degrees F
Duty Cycle
Continuous
Horsepower Rating
1.01 hp
Motor Enclosure
Totally Enclosed Nonventilated
Operating Voltage
230/460V AC
Voltage Type
AC

Description

Electric Vibrator, Duty Cycle Continuous, Maximum Force 1,766 lbf, Voltage Type AC, Phase Three, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 76 dBA, Power Source Electric Motor, Operating Voltage 230/460V AC, Maximum Bin Weight Capacity 17,640 lb, Full Load Current 1.50 A, 3.00 A, Overall Length 12.63 in, Overall Width 9.25 in, Overall Height 8.25 in, Standards CE Certified, Weight 45.42 lb, Horsepower Rating 1.01 hp
