  11. Electric Vibrator, 3.90/1.95 A, 230/460VAC, 3 Phase

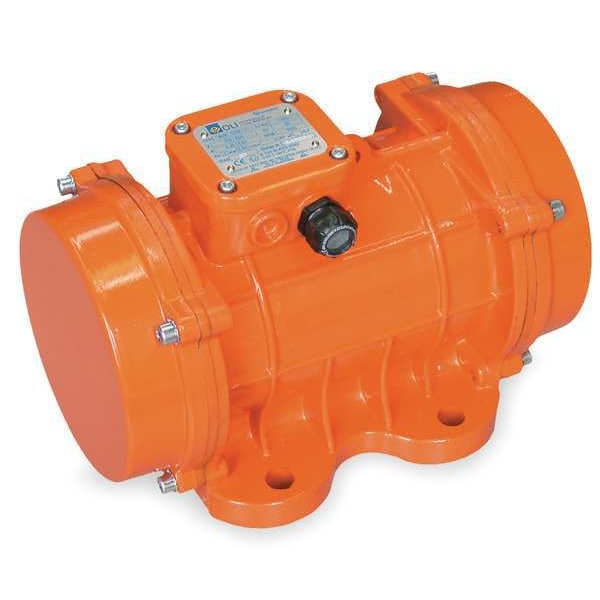

Dayton Electric Vibrator, 3.90/1.95 A, 230/460VAC, 3 Phase 1DYL9 - main

Electric Vibrator, 3.90/1.95 A, 230/460VAC, 3 Phase

  • Mfr # 1DYL9

  • Zoro # G1965801

product price: $742.99
/ea
Free Shipping & Returns

Key Features

Power Source
Electric
Force Rating
2233 lb
Voltage
230/460VAC
Phase
3
Overall Length
15-5/8"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYL9
Zoro #
G1965801
UPC #
190735137093
Country of Origin
Malta

Dimensions

Overall Length
15-5/8"
Overall Width
8-1/4"
Overall Height
8-1/4"

Details

Item
Electric Vibrator
Power Source
Electric
Force Rating
2233 lb
Voltage
230/460VAC
Phase
3
Speed
3600 vpm
Bin Weight Capacity
22,330 lb
HP
1.27
Enclosure
Totally Enclosed Non-Ventilated
Duty
Continuous
Force
Mechanically Adjustable
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and for Casting Concrete For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes
dBA
76
Max. Temp.
104 Degrees F
Amps
3.90/1.95
End Bell Material
Aluminum
Standards
CE
Mounting Plate
No
Housing Material
Aluminum
Bearing Type
Prelubricated
Includes
Oversized Vacuum-Impregnated Windings that Withstand Vibration and High Centrifugal force, Steel End Caps
Maximum Vibration Speed
3,600 vpm
Motor Enclosure
Totally Enclosed Nonventilated
Mount Plate Included
No
Adjustable Force
Yes
Maximum Bin Weight Capacity
22,330 lb
Duty Cycle
Continuous
Horsepower Rating
1.27 hp
Operating Voltage
230/460V AC
Full Load Current
1.95 A, 3.90 A
Maximum Operating Temperature
104 Degrees F
Sound Level
76 dBA
Weight
47.62 lb
Voltage Type
AC
Mount Plate Required
Yes
Maximum Force
2,233 lbf

Description

Electric Vibrator, Duty Cycle Continuous, Maximum Force 2,233 lbf, Voltage Type AC, Phase Three, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 76 dBA, Power Source Electric Motor, Operating Voltage 230/460V AC, Maximum Bin Weight Capacity 22,330 lb, Full Load Current 1.95 A, 3.90 A, Overall Length 15.63 in, Overall Width 8.25 in, Overall Height 8.25 in, Standards CE Certified, Weight 47.62 lb, Horsepower Rating 1.27 hp, Adjustable Force Yes
