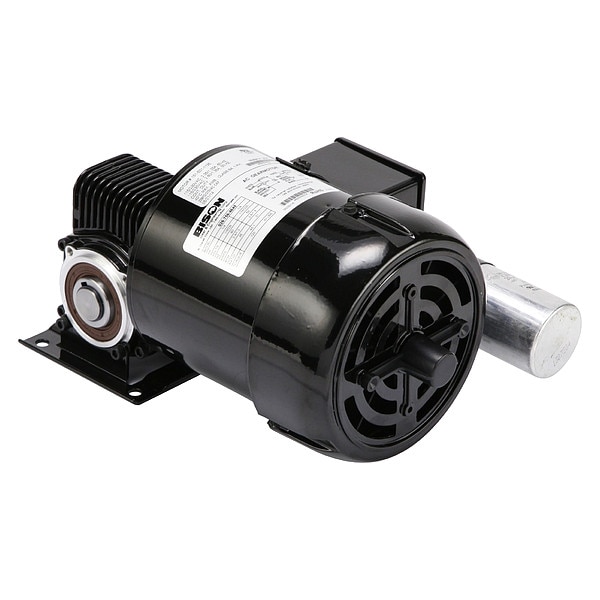

Electrical Box Turned Top of Motor 3XA87

  • Mfr # 026-756-1205
  • Zoro # G0073085
product price:
$
872.99
/ea
Free Shipping & Returns

Key Features

Rotation
CW/CCW
Motor Type
Permanent Split Capacitor
Thermal Protection
None
Motor Enclosure
Totally Enclosed Fan-Cooled
Maximum Ambient Temperature
104 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
026-756-1205
Zoro #
G0073085
UPC #
-
Country of Origin
United States
Item
AC Gearmotor
Rotation
CW/CCW
Motor Type
Permanent Split Capacitor
Thermal Protection
None
Motor Enclosure
Totally Enclosed Fan-Cooled
Maximum Ambient Temperature
104 Degrees F
Input Horsepower
0.25 hp
Motor Duty Class
Continuous
Output Location
Left Hand
Includes Junction/Conduit Box
Yes
Keyway Type
Square
Frequency
50 Hz, 60 Hz
Color
Black
Full Load Current
2.4/1.3 A
Includes Capacitor
Capacitor Included
Mounting Orientation
Any Angle
Maximum Torque
15 in-lb
Nameplate Speed
330 RPM
Inverter Rated
No
Gear Ratio
5:1
Overhung Load Capacity
270 lb
Number of Stages
1
Shaft Orientation
Right Angle
Brake Type
None
Operating Voltage
115/230V AC
Number of Output Shafts
1
Output Shaft Type
Keyed
Capacitor Required
Yes (20 uF, 370V)
Wire Color
Black

Dimensions

Output Shaft Height
1.68 in
Keyway Width
3/16 in

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 330 RPM, Maximum Torque 15 in-lb, Overhung Load Capacity 270 lb, Rotation CW/CCW, Output Shaft Height 1.68 in, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 5:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Output Shaft Type Keyed, Seal Material Not Applicable
