Shop DAYTON

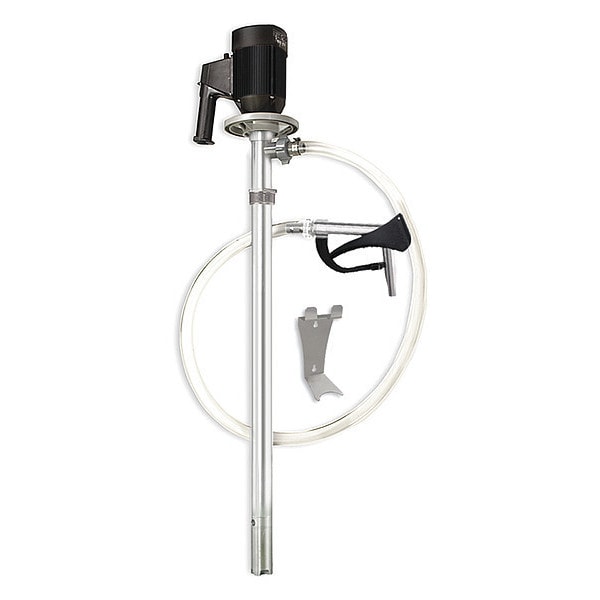

ElectricDrumPump, StainlessSteel, 120VAC

  • Mfr # 55EC79

  • Zoro # G7581714

product price:  $3,966.99
/ea
Free Shipping & Returns

Key Features

For Use With
9714
Max. Viscosity
1,500 cps
Motor Type
Electric AC Brush
Power Source
Corded Electric
Wetted Materials
Carbon Graphite, PTFE, SS316L
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55EC79
Zoro #
G7581714
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
51 in
Hose Length
6 ft
Suction Tube Length
39 in
Hose Outside Dia.
1 1/2 in
Cord Length
16 ft
Hose Inside Dia.
1 in
For Container Size
55 gal
Hose Outside Diameter
1 1/2 in
Hose Inside Diameter
1 in

Details

For Use With
9714
Item
Electric Drum Pump
Max. Viscosity
1,500 cps
Motor Type
Electric AC Brush
Power Source
Corded Electric
Wetted Materials
Carbon Graphite, PTFE, SS316L
Motor Enclosure
ODP
Metered
No
Motor RPM
0-10,000
Number of Phases
1
Max. Outlet Pressure
16 psi
Discharge Tube Outlet ID
1 in
Nozzle Operation
Manual
Hose Cover Material
UHMW-PE
For Container Type
Drum
Max. Flow Rate
15 gpm
Thermal Protection
Yes
Max. Head Pressure
16 psi
Motor HP
1 1/10 hp
Includes Spout
No
Housing Material - Pumps
316 Stainless Steel
Spout Connection Type
Hose Barb
Includes Bung Adapter
No
Self-Priming
Yes
Agency Compliance
ETL Recognized Component(Motor Only)
Includes Discharge Hose
Yes
Runs Dry
Yes
Discharge Connection Type
Hose Barb
For Media Type
General Purpose
Max. Fluid Temp.
175 Degrees F
Phase
Single
Includes Nozzle
Yes
Includes Suction Tube
Yes
Max. Head - Pumps
36 ft
Variable Speed
Yes
Full Load Amps
8.5 A
Nozzle Material
Stainless Steel
Max. Oil Flow
7 gpm
Frequency (Hz)
50/60 Hz
Suction Tube Material
Stainless Steel
Hose Tube Material
UHMW-PE
Noise Level
84 dB
Diesel Exhaust Fluid Compatible
No
Plug Type
NEMA 5-15P
Suction Tube ID
1 5/16 in
Food Grade
No
Housing Material
316 Stainless Steel
Duty Cycle
Intermittent
Rated Voltage
120 V AC
Suction Tube OD
1 5/8 in
Seal Material
Sealless
Discharge Tube Outlet OD
1 1/2 in
Maximum Viscosity
1,500 cps
Full Load Current
8.5 A
Maximum Head
36 ft
Maximum Flow Rate
15 gpm
Motor Enclosure Design
Open Drip Proof
Maximum Head Pressure
16 psi
Meter Type Included
No Meter Included
Standards
ETL Motor
Wetted Material
316L Stainless Steel/Carbon Graphite/PTFE
Maximum Oil Flow
7 gpm
Maximum Fluid Temperature
175 Degrees F
Maximum Outlet Pressure
16 psi
Motor Horsepower
1 1/10 hp
Frequency
50/60 Hz

Description

Electric Drum Pump, Hose Inside Dia. 1 in, Max. Head Pressure 16 psi, Max. Oil Flow 7 gpm, Max. Outlet Pressure 16 psi, For Use With 9714, Rated Voltage 120 V AC, Plug Type NEMA 5-15P, Suction Tube OD 1 5/8 in, Hose Length 6 ft, Suction Tube Length 39 in, Cord Length 16 ft, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 50/60 Hz, Power Source Corded Electric, Variable Speed Yes, Includes Discharge Hose Yes, Self-Priming Yes

Restrictions
