  9. Exh Fan 20 In, Less Drive Pkg, Std Duty

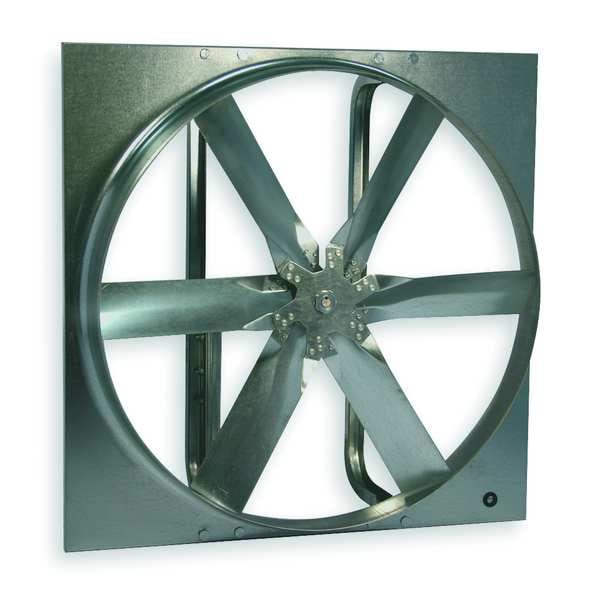

Dayton Exh Fan 20 In, Less Drive Pkg, Std Duty 3FKD7 - main

Exh Fan 20 In, Less Drive Pkg, Std Duty

  • Mfr # 3FKD7

  • Zoro # G0926371

product price: $553.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Type
Standard Duty Belt Drive Less Drive Package
Blade Dia.
20 in
Exhaust/Supply Fan Motor HP
1/4 to 1/2
Drive Package With Motor Included
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3FKD7
Zoro #
G0926371
UPC #
190735285190
Country of Origin
Mexico

Dimensions

Blade Dia.
20 in
Venturi Clearance Dia. (In.)
20 1/2 in
Shaft Dia. (In.)
3/4 in
Dimension D (In.)
1 in
Dimension B (In.)
19 1/2 in
Height (In.)
24 in
Dimension A (In.)
24 in
Max. Depth (In.)
19 1/2 in
Dimension E (In.)
16 1/4 in
Flange Width (In.)
1 in
Width (In.)
24 in
Dimension F (In.)
20 1/2 in
Bearing Size (In.)
3/4 in
Dimension C (In.)
3 1/4 in
Overall Height
24 in
Overall Width
24 in
Overall Depth
19 1/2 in
Overall Diameter
20 in
For Cut-Out Diameter
22 1/2 in
Shaft Diameter
3/4 in
Bearing Size
3/4 in
Blade Diameter
20 in
Venturi Diameter
20 1/2 in
For Cut-Out Height
22 1/2 in
Flange Width
24 in
Flange Depth
1 in
Manufacturer Warranty Length
1 yr
Venturi Depth
3 1/4 in
For Cut-Out Width
22 1/2 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Type
Standard Duty Belt Drive Less Drive Package
Exhaust/Supply Fan Motor HP
1/4 to 1/2
Drive Package With Motor Included
No
Drive Package Included
No
Propeller Material
Steel
Frame Material
Steel
Wall Collar Stock No.
3FKF3
Galvanized Wall Shutter No.
1C745
Fiberglass Wall Shutter No.
5C214
Aluminum Wall Shutter No.
4C559
Mounting Position
Horizontal or Vertical
Weatherhood No.
3FKF2
Bearing Type
Sealed Pillow Block
Wall Housing Item No.
3FKF7
Agency Compliance
AMCA, UL, cUL
Intake Guard No.
1WBU2
Max. Ambient Temp. (F)
104 Degrees F
Item
Exhaust Fan
Number of Blades
6
Standards
AMCA Air and Sound, UL/cUL 705
Mounting Orientation
Horizontal or Vertical
For Minimum Motor Horsepower
1/4 hp
Assembled
Unassembled
Guard Type
None
Blade Finish
Galvanized
Ventilation Type
Exhaust
For Maximum Motor Speed
1,221 RPM
Blade Material
Steel
Method of Construction
Stamped
Maximum Static Pressure
0.75 in wg
Minimum Airflow
3,581 cfm
Frame Finish
Zinc-Plated
Fan Style
Panel
Includes Motor
No
For Minimum Motor Speed
953 RPM
Maximum Ambient Operating Temperature
104 Degrees F
For Maximum Motor Horsepower
1/2 hp
Maximum Airflow
4,587 cfm
Maximum Inlet Temperature
104 Degrees F

Description

Exhaust Fan, Assembled Unassembled, Blade Diameter 20 in, Blade Material Steel, Frame Material Steel, For Maximum Motor Horsepower 1/2 hp, For Maximum Motor Speed 1,221 RPM, For Minimum Motor Horsepower 1/4 hp, For Minimum Motor Speed 953 RPM, Maximum Airflow 4,587 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 3,581 cfm, For Cut-Out Height 22 1/2 in, For Cut-Out Width 22 1/2 in, For Cut-Out Diameter 22 1/2 in, Guard Type None, Method of Construction Stamped, Number of Blades 6
