  9. Exhaust Fan, 12 In, 115/230V

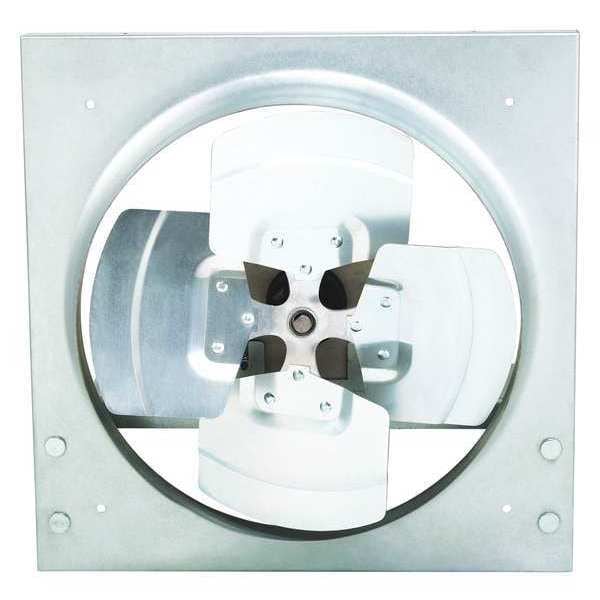

Dayton Exhaust Fan, 12 In, 115/230V 10D971 - main

Exhaust Fan, 12 In, 115/230V

  • Mfr # 10D971

  • Zoro # G3923105

product price: $417.99
/ea
Free Shipping & Returns

Key Features

Blade Dia.
12 in
CFM @ 0.000-In. SP
1,589 cfm
Phase
1
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10D971
Zoro #
G3923105
UPC #
190735108963
Country of Origin
China

Dimensions

Blade Dia.
12 in
Venturi Depth (In.)
2 1/2 in
Max. Depth (In.)
11 in
Flange Width (In.)
1 in
Dimension A (In.)
16 in
Height (In.)
16 in
Width (In.)
16 in
Dimension D (In.)
12 1/4 in
Dimension C (In.)
4 in
Dimension B (In.)
7 in
Overall Width
16 in
Overall Height
16 in
Duct Diameter
12 1/4 in
Blade Diameter
12 in
Overall Depth
11 in
Flange Width
1 in
Venturi Depth
2 1/2 in

Details

CFM @ 0.000-In. SP
1,589 cfm
Phase
1
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Aluminum
Voltage
115/230
Number of Speeds
1
Sones @ 0.000-In. SP @ 5 Ft.
16.4
Number of Blades
4
Item
Exhaust Fan
Drive Package Included
No
Hz
60
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
1/4 hp
CFM @ 0.375-In. SP
765 cfm
CFM @ 0.125-In. SP
1,419 cfm
Aluminum Wall Shutter No.
4C556
Intake Guard No.
1WBT8
Fan Voltage
115/230V AC
Speed Control
No
Motor RPM
1,750 RPM
Watts
235 W
Motor Insulation
Class B
For Use With
General Ventilation Applications
Fiberglass Wall Shutter No.
5C211
Galvanized Wall Shutter No.
1C742
Sones @ 0.125-In. SP @ 5 Ft.
14.7
Mounting Position
Vertical or Horizontal
Max. Ambient Temp. (F)
104 Degrees F
Type
Commercial Direct Drive
Propeller Material
Aluminum
Full Load Amps
2.8/1.5
Bearing Type
Ball
Frame Finish
Galvanized
Frame Material
Steel
CFM @ 0.250-In. SP
1,150 cfm
Agency Compliance
UL and cUL Listed, AMCA
Standards
AMCA, UL and cUL Listed
Guard Type
None
Duct Shape
Round
Exhaust Airflow @ 0.100 in SP
1,419 cfm
Exhaust Airflow @ 0.375 in SP
765 cfm
Mounting Orientation
Horizontal, Vertical
Wattage
215 W, 220 W
Method of Construction
Stamped
Noise Level @ 0.000 in SP @ 5 ft
16.4 sones
Exhaust Airflow @ 0.250 in SP
1,150 cfm
Electrical Connection
Hardwired
Vent Design
Ductless
Drive Type
Direct Drive
Assembled
Assembled
Exhaust Airflow @ 0.000 in SP
1,589 cfm
Exhaust Airflow @ 0.125 in SP
1,419 cfm
Nameplate Voltage
115/230V AC
Noise Level @ 0.125 in SP @ 5 ft
15 sones
Ventilation Type
Exhaust
Maximum Noise Level
16.4 sones
Maximum Ambient Operating Temperature
104 Degrees F
Speed Controllable
No
Fan Style
Panel
Motor Speed
1,750 RPM
Includes Dehumidistat
No
Includes Motor
Yes
Motor Horsepower
1/4 hp

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 12 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 12 1/4 in, Exhaust Airflow @ 0.000 in SP 1,589 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Type None, Includes Dehumidistat No, Maximum Noise Level 16.4 sones
