  9. Exhaust Fan, 18 In, 3126 CFM

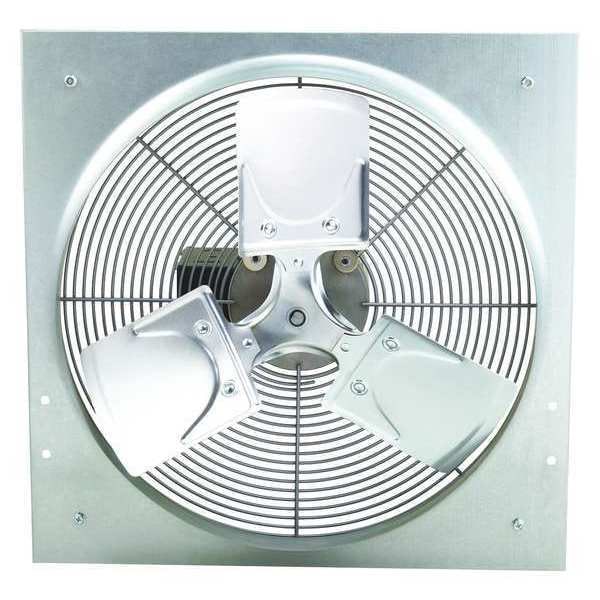

Dayton Exhaust Fan, 18 In, 3126 CFM 10D960 - main

Exhaust Fan, 18 In, 3126 CFM

  • Mfr # 10D960

  • Zoro # G4013685

product price: $431.99
/ea
Free Shipping & Returns

Key Features

Watts
248 W
CFM @ 0.250-In. SP
2,610 cfm
Propeller Material
Aluminum
Aluminum Wall Shutter No.
4C558
Sones @ 0.125-In. SP @ 5 Ft.
18
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10D960
Zoro #
G4013685
UPC #
190735108857
Country of Origin
China

Dimensions

Dimension C (In.)
3 in
Dimension B (In.)
7 in
Dimension D (In.)
18 1/2 in
Dimension A (In.)
22 in
Width (In.)
22 in
Outside Dia. (In.)
22 in
Inside Dia. (In.)
18 7/16 in
Venturi Depth (In.)
2 5/8 in
Flange Width (In.)
1 in
Blade Dia.
18 in
Max. Depth (In.)
10 in
Height (In.)
22 in
Venturi Clearance Dia. (In.)
18 7/16 in
Overall Height
22 in
Overall Width
22 in
Flange Width
1 in
Venturi Depth
2 1/2 in
Blade Diameter
18 in
Duct Diameter
18 1/2 in
Overall Depth
10 in
Overall Diameter
22 in
Venturi Diameter
18 1/2 in
For Cut-Out Diameter
18 1/2 in

Details

Item
Exhaust Fan
Watts
248 W
CFM @ 0.250-In. SP
2,610 cfm
Propeller Material
Aluminum
Aluminum Wall Shutter No.
4C558
Sones @ 0.125-In. SP @ 5 Ft.
18
CFM @ 0.125-In. SP
2,880 cfm
Galvanized Wall Shutter No.
1C744
Exhaust/Supply Fan Item
Exhaust Fan
Agency Compliance
UL and cUL Listed, AMCA
Frame Finish
Galvanized
CFM @ 0.000-In. SP
3,085 cfm
Speed Control
No
Hz
60
Full Load Amps
3.3/1.7
Motor Insulation
Class B
Sones @ 0.000-In. SP @ 5 Ft.
17.5
Guard Material
Steel
Voltage
115/230
Mounting Position
Vertical
CFM @ 0.375-In. SP
2,306 cfm
Number of Blades
3
Motor Enclosure
Totally Enclosed Air Over
Max. Ambient Temp. (F)
104 Degrees F
Wire Guard Finish
Zinc Plated
Fan Voltage
115/230V AC
Phase
1
Frame Material
Steel
Type
Medium Duty Direct Drive
Motor RPM
1,750 RPM
Exhaust/Supply Fan Motor HP
1/3 hp
Fiberglass Wall Shutter No.
5C213
Drive Package Included
No
Bearing Type
Ball
For Use With
General Ventilation Applications
Standards
AMCA, UL and cUL Listed
Exhaust Airflow @ 0.125 in SP
2,880 cfm
Noise Level @ 0.000 in SP @ 5 ft
17.5 sones
Exhaust Airflow @ 0.000 in SP
3,085 cfm
Speed Controllable
No
Noise Level @ 0.125 in SP @ 5 ft
18 sones
Electrical Connection
Hardwired
Fan Style
Panel
Maximum Noise Level
17.5 sones
Nameplate Voltage
115/230V AC
Assembled
Assembled
Drive Type
Direct Drive
Guard Finish
Zinc Plated
Number of Speeds
1
Includes Motor
Yes
Motor Horsepower
1/3 hp
Motor Speed
1,750 RPM
Vent Design
Ductless
Exhaust Airflow @ 0.250 in SP
2,610 cfm
Blade Material
Aluminum
Exhaust Airflow @ 0.100 in SP
2,880 cfm
Maximum Ambient Operating Temperature
104 Degrees F
Includes Dehumidistat
No
Duct Shape
Round
Method of Construction
Stamped
Guard Type
Intake
Ventilation Type
Exhaust
Exhaust Airflow @ 0.375 in SP
2,306 cfm
Wattage
295 W, 300 W

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 18 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 18 1/2 in, Exhaust Airflow @ 0.000 in SP 3,085 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Intake, Includes Dehumidistat No, Maximum Noise Level 17.5 sones

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
