  9. Exhaust Fan, 20 In, 115/230V

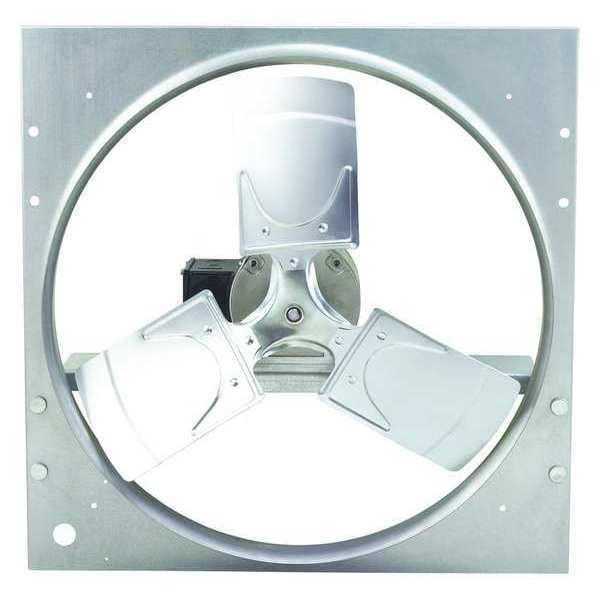

Dayton Exhaust Fan, 20 In, 115/230V 10D975 - main

Exhaust Fan, 20 In, 115/230V

  • Mfr # 10D975

  • Zoro # G3955226

product price: $568.99
/ea
Free Shipping & Returns

Key Features

Blade Dia.
20 in
CFM @ 0.000-In. SP
4,240 cfm
Phase
1
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10D975
Zoro #
G3955226
UPC #
190735109007
Country of Origin
China

Dimensions

Blade Dia.
20 in
Dimension A (In.)
24 in
Dimension B (In.)
7 in
Dimension C (In.)
3 3/8 in
Width (In.)
24 in
Max. Depth (In.)
10 3/8 in
Venturi Depth (In.)
3 1/2 in
Height (In.)
24 in
Flange Width (In.)
1 in
Dimension D (In.)
20 5/8 in
Overall Width
24 in
Overall Height
24 in
Blade Diameter
20 in
Venturi Depth
3 1/2 in
Duct Diameter
20 1/2 in
Overall Depth
10 3/8 in
Flange Width
1 in

Details

CFM @ 0.000-In. SP
4,240 cfm
Phase
1
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Aluminum
Voltage
115/230
Number of Speeds
1
Sones @ 0.000-In. SP @ 5 Ft.
19.8
Number of Blades
3
Item
Exhaust Fan
Motor Insulation
Class B
Motor RPM
1,172 RPM
Watts
248 W
Sones @ 0.125-In. SP @ 5 Ft.
21.5
Frame Finish
Galvanized
CFM @ 0.375-In. SP
2,438 cfm
Hz
60
Fan Voltage
115/230V AC
Mounting Position
Vertical or Horizontal
CFM @ 0.125-In. SP
3,774 cfm
Intake Guard No.
1WBU2
Frame Material
Steel
Type
Commercial Direct Drive
For Use With
General Ventilation Applications
Fiberglass Wall Shutter No.
5C214
Exhaust/Supply Fan Motor HP
1/3 hp
Max. Ambient Temp. (F)
104 Degrees F
Aluminum Wall Shutter No.
4C559
Exhaust/Supply Fan Item
Exhaust Fan
Agency Compliance
UL and cUL Listed, AMCA
CFM @ 0.250-In. SP
3,223 cfm
Bearing Type
Ball
Propeller Material
Aluminum
Galvanized Wall Shutter No.
1C745
Speed Control
No
Drive Package Included
No
Full Load Amps
3.3/1.8
Standards
AMCA, UL and cUL Listed
Maximum Ambient Operating Temperature
104 Degrees F
Vent Design
Ductless
Exhaust Airflow @ 0.000 in SP
4,240 cfm
Exhaust Airflow @ 0.250 in SP
3,223 cfm
Duct Shape
Round
Wattage
260 W, 270 W
Mounting Orientation
Horizontal, Vertical
Motor Speed
1,172 RPM
Nameplate Voltage
115/230V AC
Method of Construction
Stamped
Ventilation Type
Exhaust
Exhaust Airflow @ 0.100 in SP
3,774 cfm
Assembled
Assembled
Exhaust Airflow @ 0.375 in SP
2,438 cfm
Includes Motor
Yes
Motor Horsepower
1/3 hp
Fan Style
Panel
Maximum Noise Level
19.8 sones
Noise Level @ 0.125 in SP @ 5 ft
22 sones
Includes Dehumidistat
No
Guard Type
None
Exhaust Airflow @ 0.125 in SP
3,774 cfm
Drive Type
Direct Drive
Noise Level @ 0.000 in SP @ 5 ft
19.8 sones
Speed Controllable
No
Electrical Connection
Hardwired

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 20 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 20 1/2 in, Exhaust Airflow @ 0.000 in SP 4,240 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Type None, Includes Dehumidistat No, Maximum Noise Level 19.8 sones
