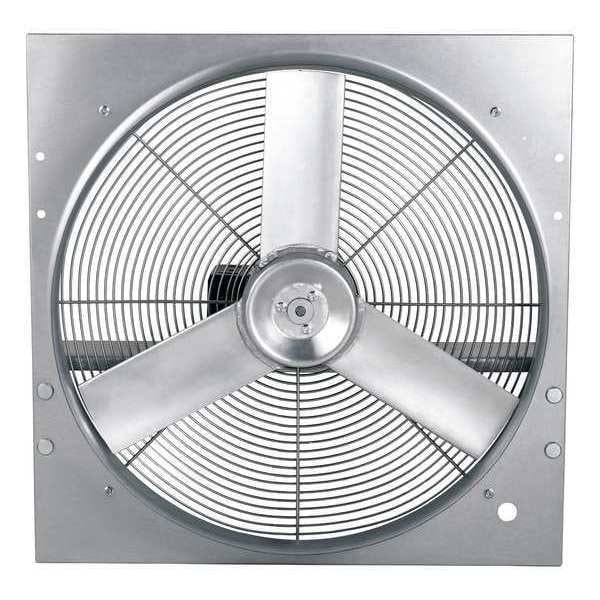

Exhaust Fan, 20 In, 3745 CFM

Mfr # 10D967
Zoro # G4086065

$588.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Venturi Clearance Dia. (In.) 20 1/2 in
Phase 1
Fiberglass Wall Shutter No. 5C214
Frame Material Steel
Motor Enclosure Totally Enclosed Air Over

See all product information

Brand Dayton
MFR # 10D967
Zoro # G4086065
UPC #
190735108925
Country of Origin China
Category Exhaust and Supply Fan Accessories

Dimensions

Venturi Clearance Dia. (In.)	20 1/2 in
Dimension C (In.)	2 1/4 in
Blade Dia.	20 in
Dimension D (In.)	20 5/8 in
Height (In.)	24 in
Outside Dia. (In.)	24 in
Width (In.)	24 in
Dimension B (In.)	7 in
Venturi Depth (In.)	3 1/2 in
Flange Width (In.)	1 in
Dimension A (In.)	24 in
Inside Dia. (In.)	20 1/2 in
Max. Depth (In.)	9 1/4 in
Overall Height	24 in
Overall Width	24 in
Flange Width	1 in
Venturi Depth	3 1/2 in
Overall Diameter	24 in
Overall Depth	9 1/4 in
Duct Diameter	20 1/2 in
Blade Diameter	20 in
Venturi Diameter	20 1/2 in
For Cut-Out Diameter	20 1/2 in

Details

Item	Exhaust Fan
Phase	1
Fiberglass Wall Shutter No.	5C214
Frame Material	Steel
Motor Enclosure	Totally Enclosed Air Over
Number of Blades	3
Watts	248 W
Motor Insulation	Class B
For Use With	General Ventilation Applications
Sones @ 0.125-In. SP @ 5 Ft.	20
Frame Finish	Galvanized
Exhaust/Supply Fan Motor HP	1/3 hp
CFM @ 0.250-In. SP	3,329 cfm
Bearing Type	Ball
Voltage	115/230
Aluminum Wall Shutter No.	4C559
Drive Package Included	No
Wire Guard Finish	Zinc Plated
Fan Voltage	115/230V AC
Motor RPM	1,710 RPM
Propeller Material	Aluminum
Max. Ambient Temp. (F)	104 Degrees F
Agency Compliance	UL and cUL Listed, AMCA
Type	Heavy Duty Direct Drive
CFM @ 0.375-In. SP	2,883 cfm
Speed Control	No
Hz	60
CFM @ 0.000-In. SP	4,134 cfm
Sones @ 0.000-In. SP @ 5 Ft.	20
Guard Material	Steel
CFM @ 0.125-In. SP	3,710 cfm
Mounting Position	Vertical
Full Load Amps	3.3/1.7
Galvanized Wall Shutter No.	1C745
Exhaust/Supply Fan Item	Exhaust Fan
CFM @ 0.500-In. SP	2,163 cfm
Standards	AMCA, UL and cUL Listed
Wattage	360 W, 364 W
Maximum Noise Level	19.7 sones
Includes Dehumidistat	No
Noise Level @ 0.000 in SP @ 5 ft	19.7 sones
Fan Style	Panel
Noise Level @ 0.125 in SP @ 5 ft	20 sones
Assembled	Assembled
Exhaust Airflow @ 0.500 in SP	2,163 cfm
Guard Finish	Zinc Plated
Blade Material	Aluminum
Ventilation Type	Exhaust
Vent Design	Ductless
Speed Controllable	No
Exhaust Airflow @ 0.375 in SP	2,883 cfm
Guard Type	Intake
Method of Construction	Stamped
Nameplate Voltage	115/230V AC
Includes Motor	Yes
Duct Shape	Round
Exhaust Airflow @ 0.125 in SP	3,710 cfm
Electrical Connection	Hardwired
Exhaust Airflow @ 0.000 in SP	4,134 cfm
Exhaust Airflow @ 0.250 in SP	3,329 cfm
Maximum Ambient Operating Temperature	104 Degrees F
Motor Speed	1,710 RPM
Drive Type	Direct Drive
Number of Speeds	1
Exhaust Airflow @ 0.100 in SP	3,710 cfm
Motor Horsepower	1/3 hp

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 20 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 20 1/2 in, Exhaust Airflow @ 0.000 in SP 4,134 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Intake, Includes Dehumidistat No, Maximum Noise Level 19.7 sones

Replacement Parts

Dayton Propeller, 20" Dia., 1/2" Bore, 20.5 Deg.

product price: $116.99
/ea
Dayton Motor

product price: $282.99
/ea
Dayton Replacement Propeller

product price: $224.99
/ea
Dayton Guard

product price: $121.99
/ea
