  9. Exhaust Fan, 30 In, 208-230/460V

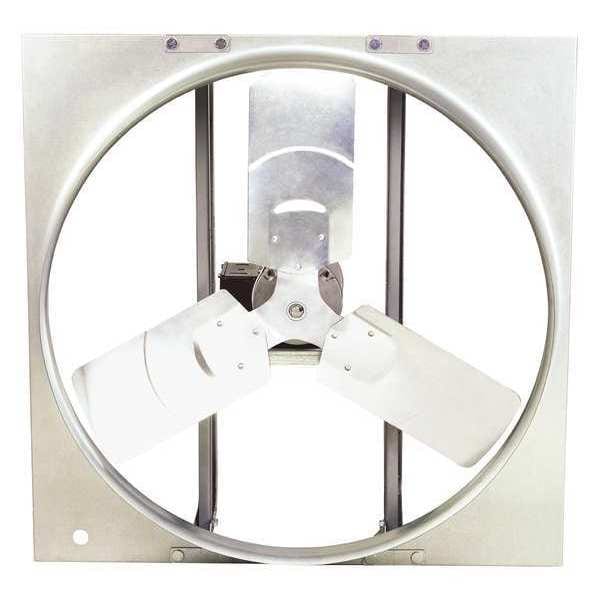

Dayton Exhaust Fan, 30 In, 208-230/460V 10D982 - main

Exhaust Fan, 30 In, 208-230/460V

  • Mfr # 10D982

  • Zoro # G4122361

product price: $892.99
/ea
Item requires special delivery charges. A $90.00 per item surcharge will be applied.

Key Features

Blade Dia.
30 in
CFM @ 0.000-In. SP
9,541 cfm
Phase
3
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10D982
Zoro #
G4122361
UPC #
190735109076
Country of Origin
China

Dimensions

Blade Dia.
30 in
Width (In.)
34 in
Dimension B (In.)
8 1/2 in
Venturi Depth (In.)
4 1/4 in
Dimension C (In.)
3 1/2 in
Flange Width (In.)
1 in
Dimension A (In.)
34 in
Height (In.)
34 in
Max. Depth (In.)
12 in
Dimension D (In.)
30 1/2 in
Overall Width
34 in
Overall Height
34 in
Overall Depth
12 in
Blade Diameter
30 in
Venturi Depth
4 1/2 in
Flange Width
1 in

Details

CFM @ 0.000-In. SP
9,541 cfm
Phase
3
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Aluminum
Voltage
208-230/460
Sones @ 0.000-In. SP @ 5 Ft.
27
Number of Blades
3
Item
Exhaust Fan
Galvanized Wall Shutter No.
1C055
Drive Package Included
No
Aluminum Wall Shutter No.
3C309
Intake Guard No.
1WBU4
Exhaust/Supply Fan Item
Exhaust Fan
Mounting Position
Vertical or Horizontal
Frame Finish
Galvanized
Motor Insulation
Class B
Watts
750 W
For Use With
General Ventilation Applications
Max. Ambient Temp. (F)
104 Degrees F
Hz
60
Motor RPM
1,150 RPM
Fan Voltage
208-230/460V AC
CFM @ 0.125-In. SP
8,799 cfm
Bearing Type
Ball
CFM @ 0.250-In. SP
7,887 cfm
Fiberglass Wall Shutter No.
5C216
Type
Commercial Direct Drive
Full Load Amps
3.6-3.8/1.9
Speed Control
No
Propeller Material
Aluminum
CFM @ 0.375-In. SP
6,678 cfm
Frame Material
Steel
Sones @ 0.125-In. SP @ 5 Ft.
25
Exhaust/Supply Fan Motor HP
3/4 hp
Agency Compliance
UL and cUL Listed, AMCA
Standards
AMCA, UL and cUL Listed
Includes Motor
Yes
Noise Level @ 0.125 in SP @ 5 ft
25 sones
Motor Speed
1,150 RPM
Exhaust Airflow @ 0.250 in SP
7,887 cfm
Motor Horsepower
3/4 hp
Noise Level @ 0.000 in SP @ 5 ft
27 sones
Guard Type
None
Maximum Noise Level
27 sones
Exhaust Airflow @ 0.375 in SP
6,678 cfm
Mounting Orientation
Horizontal, Vertical
Exhaust Airflow @ 0.000 in SP
9,541 cfm
Maximum Ambient Operating Temperature
104 Degrees F
Fan Style
Panel
Nameplate Voltage
208-230/460V AC
Ventilation Type
Exhaust
Exhaust Airflow @ 0.125 in SP
8,799 cfm

Description

Exhaust Fan, Blade Diameter 30 in, Blade Material Aluminum, Exhaust Airflow @ 0.000 in SP 9,541 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Type None, Maximum Noise Level 27 sones

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
